Most “mattress sag” is actually bed frame sag. The foundation is the reaction surface that sets the mattress boundary condition. Wide slat gaps allow foam to extrude, migrating the support curve and collapsing zoning. A deflecting center beam creates a valley that produces pelvic obliquity, asymmetric spinal shear patterns, and morning stiffness. If the chassis has loose joints, it exhibits mechanical hysteresis—support lags behind motion, and the squeak is energy loss you can hear.
- Introduction: The Foundation as a Reaction Surface
- Slat Geometry: Slat Spacing, Support Gaps, and Foam Extrusion
- Center Beam Deflection: The “Butterfly Effect” of Structural Failure
- Dynamic Sag: The 6–9 Hour Foundation Drift
- Search Intent: Best Frames, Warranties, Bunkie Boards, Sag Fixes
- VBU Bed Frame Engineering Standards (Buying Guide Clusters)
- VBU Matrix: Foundation Material Physics
- VBU Audit Card: The Foundation Structural Integrity Test
- People Also Ask (PAA): Bed Frames, Warranties, Sag, Noise
- VBU Bedroom Engineering: Bed Frame FAQ
- Conclusion
- Glossary (Post-Conclusion Reference)
The Bedroom Engineering Series is designed as a layered system, where each article isolates one failure domain in the 6–9 hour sleep load event and explains how it affects recovery, alignment, and comfort.
System-Level Load & Recovery: The Science of Sleep: Why Most Bedrooms Damage Recovery establishes sleep as a continuous structural load event and explains why recovery fails when any layer of the system drifts during the night.
Material & Resistance Layer: Mattress Support Physics: Why Firmness Ratings Are Misleading explains how mattresses generate resistance (ILD, sag factor, strike-point behavior) and why those properties only work when the base provides a stable boundary condition.
Human Geometry Layer: Side vs. Back Sleeper Geometry: Fixing Neutral Spine Offset (NSO) shows how small changes in support geometry translate into pelvic rotation, torsional bias, and alignment drift for different sleep postures.
This Article’s Contribution (The Chassis Layer): Article #4 isolates the bed frame and foundation as the structural chassis of the system. It explains how slat spacing, center support, lateral bracing, and joint integrity determine whether the mattress can maintain its designed support curve—or whether the entire system drifts into dynamic sag and misalignment even when the mattress itself is not defective.
I. Introduction: The Foundation as a Reaction Surface
The System Error: Why the Mattress Gets Blamed
A mattress is designed around a boundary condition: a stable, planar base with predictable stiffness. If the base changes, the mattress changes. That’s why people experience “mattress sag vs frame sag” confusion. The foam or coils may be fine—but the chassis shifts the support curve.
Defining the Reaction Surface (Equal and Opposite Force)
In mechanical terms, the bed frame provides the reaction surface—the equal-and-opposite force that allows mattress layers to resist load according to design. Change the base’s modulus and geometry, and you get load vector deviation: forces no longer travel vertically through the mattress; they bend and rotate through the sleeper, producing NSO.

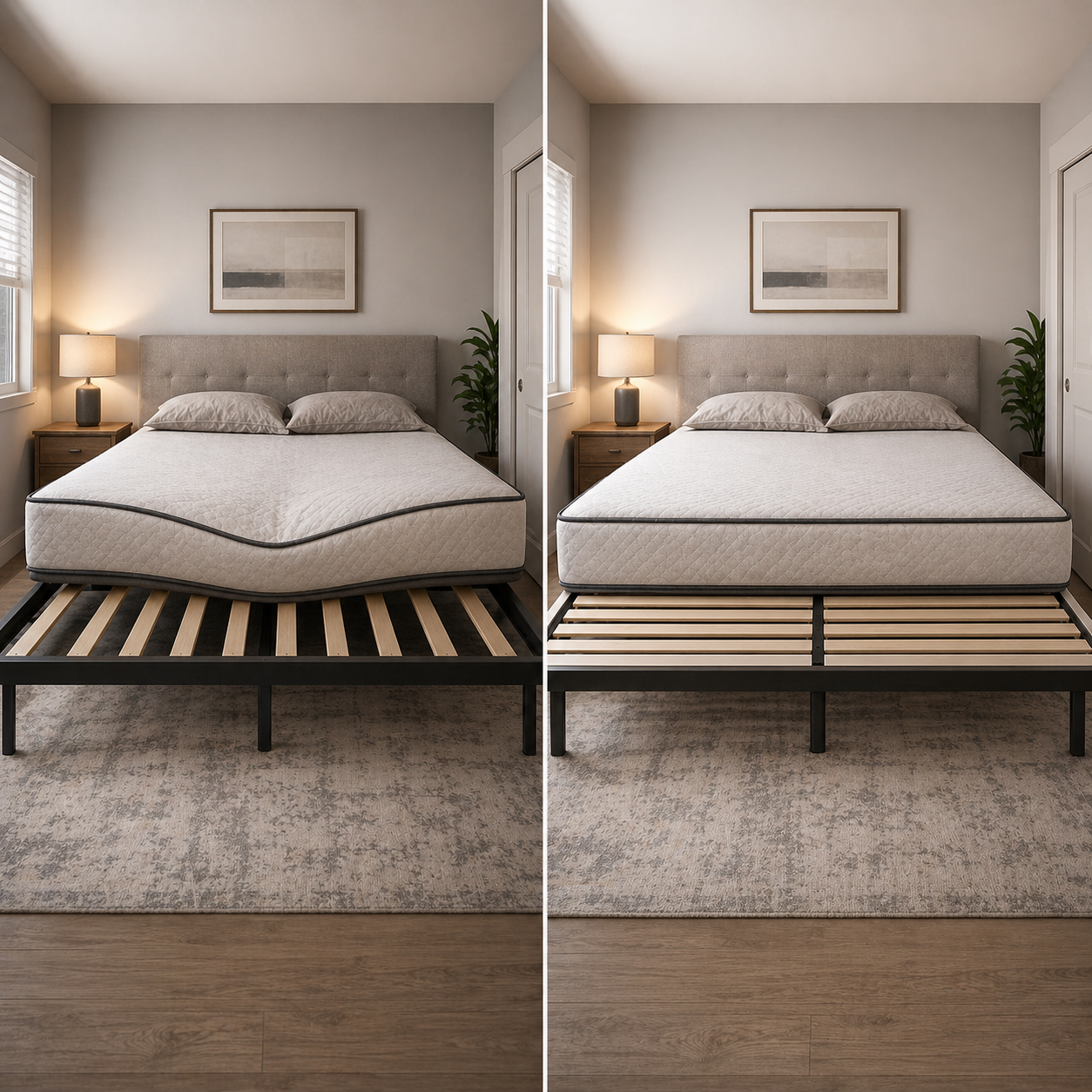

II. Slat Geometry: Slat Spacing, Support Gaps, and Foam Extrusion
Slatted Base Support Rules: The “3-Inch Rule”
For most modern foam and hybrid designs, slatted base support rules converge on a practical threshold: slat gaps wider than about 3 inches allow high-density foams to deform into gaps. This isn’t “softness”—it’s geometry failure. Foam begins to extrude, changing the surface compliance gradient and causing support curve migration.
Engineering Entities: Why Slats Are Beams (E, I, S)
Slats are beams resisting bending. Their performance depends on: Modulus of Elasticity (E-modulus) (wood vs steel stiffness), Moment of Inertia (I) (cross-section geometry), and Section Modulus (S) (bending strength). Thick slats with higher I and S reduce deflection under load and protect the mattress’ effective stiffness profile.
Improper slat spacing ruins the mattress sag factor and strike-point behavior. Read: Mattress Support Physics: ILD, Sag Factor, and Strike-Point Failure . A mattress that “should” have progressive resistance cannot behave progressively on a broken boundary condition.
Most mattress warranties reference static sag thresholds (often ~1.5 inches), but these tests ignore base-induced deflection, dynamic creep, and slat extrusion. The failure modes described here occur below warranty thresholds and are therefore structurally real but contractually invisible.
III. Center Beam Deflection: The “Butterfly Effect” of Structural Failure
The Fulcrum Problem: Valley Formation and Pelvic Obliquity
A bowing center rail creates a midline valley. That valley becomes a geometric attractor that drives pelvic obliquity and disrupts thoracolumbar coupling. Side sleepers rotate into the valley; back sleepers lose lumbar timing. The human system responds with asymmetric stabilization, producing lumbopelvic rhythm disruption and morning stiffness.
Span-to-Support Ratio (SSR): Where Supports Actually Matter
The key isn’t “more legs”—it’s effective support placement + joint integrity + torsional resistance. If supports do not touch the floor under load, they are not supports. If joints loosen, supports become “decorative.” SSR is a simplifier: reduce unsupported span and increase real load paths.
Practical note: in residential frames, unsupported spans above ~30–36 inches without a true floor-contact center support show sharply higher deflection and torsional drift over time.
Expansion: Lateral Bracing and Vestibular Micro-Awakening
SSR alone is not enough. A frame with no lateral bracing can sway during a turn. That sway matters because the vestibular system detects instability; even small chassis motion can trigger micro-awakenings. This is why a “quiet” frame isn’t just comfort—it’s damping and stiffness behaving correctly under dynamic load.
Sit on the edge and roll side-to-side once. If the frame continues to oscillate for more than ~1–2 cycles, lateral bracing/damping is insufficient and turn events are more likely to amplify chassis drift and noise over time.
Center sag in bed foundations mirrors center sag in long-span dining systems. Compare mechanics here: Comparing Center-Sag Mechanics: Span, Deflection, and Alignment Drift in Expandable Tables .
Joint integrity is the hidden variable. See: Analyzing the Mechanical Bond Requirements of Furniture Joinery . Weak joinery concentrates stress at fasteners, increases loosening, and accelerates support curve migration.
Typical failure pattern: wide pine slats (3.5–4 in gaps) + thin center rail with two floating legs. Result: foam extrusion increases ESD, center rail bows under pelvic load, and joints loosen asymmetrically—creating a midline valley that drives NSO even on a new mattress.
IV. Dynamic Sag: The 6–9 Hour Foundation Drift
Material Creep and “Support Lag”
Under sustained load, frames exhibit time-dependent deformation. Wood shows creep rate constants qualitatively (species and construction dependent), and metal systems can deform at joints if fasteners slip. This creates support curve migration across the night: the effective stiffness profile changes, even if the mattress foam is stable.
Hysteresis at the Chassis Level (The Squeak is Energy Loss)
A loose joint produces motion + noise because energy is being dissipated. That’s mechanical hysteresis: the chassis does not return to its original geometry immediately after you move. Instead, support “lags” (damping + joint slip), creating a micro-delay in reaction force. This lag is why a frame can feel stable at minute 5 and unstable at hour 5.
Dynamic vs Static Load: “False Firmness”
Static tests (a quick sit or push) miss the real event: a continuous 6–9 hour load. Over time, joints relax, wood warms, friction interfaces shift, and the chassis drifts downward by millimeters that matter biomechanically. The outcome is misalignment, asymmetric shear, and altered intervertebral disc pressure cycling.
For the full recovery context (why drift matters), see: Tracking Foundation Drift During the Continuous Load Event (Sleep Recovery Mechanics) .
For durability and fatigue logic in chassis materials, see: Evaluating Material Fatigue, Creep, and Long-Term Stability (Durability vs Usage Matrix) .
V. Search Intent: Best Frames, Warranties, Bunkie Boards, Sag Fixes
Best Bed Frame for a Foam Mattress
For foam and memory foam, prioritize: slat gaps ≤ 3 inches, rigid planar support, and true floor-contact center support for queen/king. Foam is boundary-condition sensitive; wide slats create Hertzian contact pressure zones and extrusion that mimics “mattress sag.”
Can My Bed Frame Void My Mattress Warranty?
Often yes. Many warranties specify foundation requirements for memory foam mattresses: maximum slat spacing, center support rules, and base rigidity. If the frame violates those, the manufacturer can attribute sag to the base.
Do I Need a Bunkie Board?
If slats are too far apart or the plane is uneven, a manufacturer-approved bunkie board can restore a stable boundary condition. It’s a way to reduce point load concentration and slow support curve migration—without replacing the entire platform.
How to Fix a Sagging Bed Frame
Fixes should restore geometry: tighten joinery, add true center supports, add lateral bracing, and reduce slat spacing. Avoid “random shims” that create stress concentration—support must distribute load, not focus it.
VI. VBU Bed Frame Engineering Standards (Buying Guide Clusters)
- Slat spacing: ≤ 3 inches for foam/hybrids (support gaps drive extrusion).
- Center support requirements for queen/king beds: true floor-contact center beam + multiple supports.
- Lateral bracing: resist sway during turns (reduces vestibular micro-awakenings).
- Joint design: low stress concentration, high clamping force, low hysteresis lag.
- Material physics: E-modulus, I, S, and G must match the span and load.
Latex: needs uniform support to prevent hammock bias; watch slat gaps and center drift.
Hybrids: coils can mask early base issues, but uneven planes still collapse zoning and shift support timing.
VII. VBU Matrix: Foundation Material Physics
| Component | Material | Fail Mode | Impact on NSO |
|---|---|---|---|
| Slats | Softwood (Pine) | Flex-fatigue, creep, low E-modulus | ESD increases → support curve migration → pelvic drift and thoracolumbar coupling errors |
| Center Rail | Thin steel / unreinforced | Torsional twist (low G), joint slip | Midline valley → pelvic obliquity → asymmetric spinal shear patterns |
| Legs | Plastic/Cast | Shear failure / cracking | Collapse risk + sudden NSO shift (safety issue) |
| Joinery | Cam-locks / low clamp | Mechanical loosening, hysteresis lag | Squeaks + damping loss → micro-awakenings + dynamic sag |
E-modulus (wood vs steel stiffness), Section Modulus (S) and Moment of Inertia (I) (slat bending), Shear Modulus (G) (torsional resistance), damping coefficient (motion/noise), creep rate constants (qualitative), Hertzian contact pressure zones (mattress–slat interface), and stress concentration at fastening points (looseness accelerator).
Compression set vs creep, support curve migration, surface compliance gradient, zoning collapse under uneven base planes, load vector deviation, effective stiffness profile, and boundary condition dependence.
Lumbopelvic rhythm disruption, pelvic obliquity, asymmetric spinal shear patterns, thoracolumbar coupling, and intervertebral disc pressure cycling.
VIII. VBU Audit Card: The Foundation Structural Integrity Test
VBU Audit Card — Foundation Structural Integrity (3 Tests)
Test #1: The Slat-Gap Gauge (Extrusion Risk)
Measure open gaps. If > 3 inches, expect foam extrusion and support curve migration. Tighten spacing or use an approved rigid support layer.
Test #2: The Level-Line Sweep (Center Deflection)
Use a straightedge across the center rail. Any bow = valley formation. That valley is a pelvic-rotation driver (NSO) even if the mattress is new.
Test #3: The Torque Stress Check (Joinery + Hysteresis)
Twist-test rails. Squeak = energy loss = hysteresis. Movement = support lag. Both predict dynamic sag and micro-awakenings.
Base failure often shows up as pelvic rotation in side sleepers and NSO signatures. See: Side vs. Back Sleeper Geometry: Fixing Neutral Spine Offset (How failing bases create alignment drift) .
For structural integrity logic and weight-limit framing, see: Understanding Structural Weight Limits and Static Load Safety (TV Stand Engineering Analogy) .
People Also Ask (PAA): Bed Frames, Warranties, Sag, Noise
IX. VBU Bedroom Engineering: Bed Frame FAQ
Q1: Can my bed frame void my mattress warranty?
Yes—often. Many mattress warranties specify foundation requirements, including maximum slat spacing, center support rules for queen and king beds, and base rigidity. If your frame violates those requirements, manufacturers can attribute visible sag to the foundation rather than the mattress materials, even when the mattress is relatively new.
Q2: What is the ideal Span-to-Support Ratio for a King-sized bed?
The goal is to minimize unsupported span with true floor-contact center supports and strong joinery. A king needs a center beam that is stiff in bending (high I/S) and resistant to torsion (adequate G), plus lateral bracing to prevent sway.
Q3: Do I need a bunkie board with slats?
You may—especially if slat gaps exceed about 3 inches or the support plane is uneven. A manufacturer-approved bunkie board restores a more uniform reaction surface, reducing foam extrusion, point-load concentration, and support curve migration. It’s often the fastest way to correct slatted base support rules without replacing the entire frame.
Q4: Are metal platform beds better than wooden slat beds?
Not automatically. Metal can resist creep but may twist if bracing is weak (low torsional rigidity). Wood can be excellent with thick slats and strong joinery. Choose based on deflection under load + lateral stability. See: Engineered Wood vs Solid Wood: How to Choose What’s Right .
Q5: How do I fix center support sag in an existing frame?
Verify center deflection with a level-line sweep. Then add true floor-contact supports (not floating feet), tighten/upgrade joinery, and add lateral bracing to prevent sway. Avoid point-load shims that create stress concentration.
Q6: What is the “extrusion effect” in foam mattresses?
Foam extrusion is when the mattress compresses into wide slat gaps, increasing effective support depth and changing the surface compliance gradient. It can create “mattress sag” sensations without actual foam compression set.
Q7: How does bed height impact transfer safety for aging sleepers?
Bed height affects transfer effort and stability. Too low increases effort; too high increases step-down risk. See: Aging-in-Place Bedroom Transfer & Night Safety .
Conclusion
A mattress is a tuned support system—but it only performs if the frame supplies a stable reaction surface. Slat gaps larger than 3 inches trigger foam extrusion and zoning collapse. A deflecting center beam creates a valley, producing pelvic obliquity, torsional bias, and asymmetric spinal shear. Loose joints add mechanical hysteresis: support lags behind motion, energy is lost as squeaks, and the chassis drifts across the 6–9 hour load event.
In Chicago, radiant heat expansion and seasonal humidity cycling accelerate joint looseness and micro-deflection. If your symptoms are worse in the morning, diagnose the foundation first: many “mattress problems” are base problems in disguise.
If your mattress feels saggy or misaligned:
- Reduce slat gaps to ≤ 3 inches
- Add true floor-contact center support
- Eliminate joinery looseness and frame twist
Glossary (Post-Conclusion Reference)
Bed frame sag: chassis deflection that migrates the mattress support curve and creates alignment drift.
Mattress sag vs frame sag: perceived sag caused by base boundary-condition failure rather than foam compression set.
Foundation requirements for memory foam mattresses: tight slat spacing, planar rigidity, and true center supports.
Slatted base support rules: practical constraints (≤ 3-inch gaps, stable plane, secure seating) to prevent extrusion and zoning collapse.
Reaction surface: the base plane providing equal-and-opposite force so mattress resistance behaves predictably.
Modulus of Elasticity (E-modulus): stiffness of material (wood vs steel) affecting deflection under load.
Moment of Inertia (I): cross-section geometry controlling how slats resist bending.
Section Modulus (S): bending strength indicator for slats/rails.
Shear modulus (G): torsional resistance; higher G reduces twist and sway.
Damping coefficient: how a structure dissipates vibration/motion (noise and micro-awakening relevance).
Hertzian contact pressure zones: localized pressure peaks at the mattress–slat interface (edge loading).
Stress concentration: local stress spikes at fasteners/joints that accelerate loosening.
Mechanical hysteresis: energy loss + lag in returning to shape; squeaks are an audible symptom.
Support curve migration: the mattress resistance profile shifting due to base deformation/creep.
Surface compliance gradient: how quickly a surface yields as load increases; altered by extrusion/uneven planes.
Effective stiffness profile: combined mattress + base stiffness seen by the body.
Boundary condition dependence: mattress behavior changes depending on the base it sits on.
Lumbopelvic rhythm disruption: compensation patterns when pelvis/low back alignment is biased.
Thoracolumbar coupling: ribcage–lumbar alignment behavior; disrupted by valleys and sway.
Intervertebral disc pressure cycling: how disc loading changes across the night; biased by sustained NSO/torsion.
