The Engineering Trap of “One Table, Two Structures”: An expandable dining table is a mechanical system with a structural discontinuity built into its center. When the load path is interrupted at the seam, sag, leaf misalignment, and slide racking become predictable outcomes—not “bad luck.”
Entity definition: Expandable dining tables are a subclass of dining tables that introduce a mechanical extension system (slides, rails, leaves, alignment pins) into the structural frame—so the table behaves like a structure and a mechanism at the same time.
This article is part of the Dining Engineering Series inside the VBU Furniture Lab. While earlier papers focused on Seat Geometry (Golden Ratio Seat Geometry (chair/table interface math)) and the Chair-to-Table Interface Conflict (Unified Dining System: Chair-to-Table Interface Conflict (clearance + posture)), this paper covers the structural failure of the expanding surface: how extension seams interrupt the load path, how tolerances stack, and why center sag concentrates at the geometric mid-span.
Technical connections across the series: Expanded seating zones shift real loads away from primary supports (seat geometry), guests get forced onto the mechanical seam (interface conflict), extension rails behave like fatigue-prone fastener paths found in wobbling chairs (Fastener fatigue & joint torque in dining chairs (why wobble accelerates)), and visible leaf wear often traces to material math (grain mismatch, finish reflectance, hardness/usage mismatch) (Material selection for dining table surfaces (hardness + finish reality)).
Expandable dining tables fail most often at the center seam, where the load path is interrupted. As the table extends, mid-span deflection, tolerance stacking, and slide racking concentrate stress at the leaf interface—causing sag, gaps, and alignment failure under real-world use.
The “center dip” in an extended table follows the same physics as long-span shelving: as span increases, stiffness demands rise and time-dependent sag becomes predictable unless the frame geometry and support strategy restore the load path. That span-to-sag mechanism is mapped cleanly in Storage Engineering #2 (Shelf Sags).
Expandable tables fail because they are two structures pretending to be one. When you add a leaf, you interrupt the load path at the seam, creating structural discontinuity. The center becomes a high-stress zone, so sag, misalignment, and slide racking are predictable unless the internal frame and hardware are engineered to behave like a single beam under load.
Common Expandable Dining Table Problems (and Root Causes)
- Center sag / dip — mid-span bending + interrupted load path at the seam.
- Leaf misalignment — tolerance stacking in slides, pins, and seasonal wood movement.
- Seam gap (winter) — differential expansion: wood shrinks, metal hardware doesn’t.
- Racking / binding on open — lack of synchronized, dual-rail guidance.
- Visible leaf wear — grain/finish mismatch + uneven use.
See the 60-second audit for in-store diagnostics. For standardized table test methods (stability/strength/durability), see ANSI/BIFMA standards overview and ISO 19682:2023 (tables/desks test methods).
Baseline Comparison: Fixed Table vs Expandable Table (Explicit Contrast)
| Feature | Fixed Table | Expandable Table |
|---|---|---|
| Load Path | Continuous beam, single structural path | Interrupted at seam, interface-dominated behavior |
| Sag Risk | Lower (geometry still matters) | Higher at mid-span, especially when extended |
| Alignment Issues | Rare | Common over time due to tolerance stacking + seasonal movement |
| Hardware Dependence | Minimal | Critical (slides, pins, mounts define squareness and rigidity) |
The same structural-integrity logic used to evaluate long-span furniture shows up in unexpected categories. In tip-risk products, the failure is usually a load-path and weight-distribution problem long before it becomes a “bad assembly” problem— which is why the principles map cleanly to expandable tables that rely on a seam interface: TV stand safety: weight distribution, structural integrity, and real-world stability .
- Mid-span deflection concentrates at the center seam when the span increases.
- Tolerance stacking converts tiny hardware/wood errors into visible gaps and misalignment.
- Torsional rigidity drops when slides aren’t synchronized or the frame can rack.
- Dynamic load (leaning, push-off, bumping) causes real failure—not static “weight limits.”
VBU Failure Mode: Seam-Hinge Effect
When the extension seam behaves like a rotational hinge instead of a clamped interface.
The two halves twist relative to each other under torsion, accelerating alignment-pin shear stress, slide wear, and mid-span sag.
System Brief (What to Buy For):
Prioritize gear-driven synchronized dual-rail slides (both halves open evenly), a deeper apron (vertical beam depth), and a hidden center stretcher that restores the load path. Tabletop thickness is often a distraction—beam depth and load path continuity decide sag and alignment.
If the seam is already uneven in a showroom: it will get worse at home with seasonal movement and use cycles.
Minimum Spec (VBU): Avoid single-rail friction slides or designs with unreinforced spans > 60 in. For tables extending beyond 72–80 in, look for dual-rail synchronization and an internal center support strategy (stretcher or leg).
One practical side effect of long extensions is that the table stops being “a surface” and becomes a traffic-flow object. Once extended, the real question is whether people can pass without shoulder-checking corners or turning sideways— which uses the same clearance logic applied in walkway physics and clearance geometry .
Quick Checks That Predict Expandable Table Failure (No Tools)

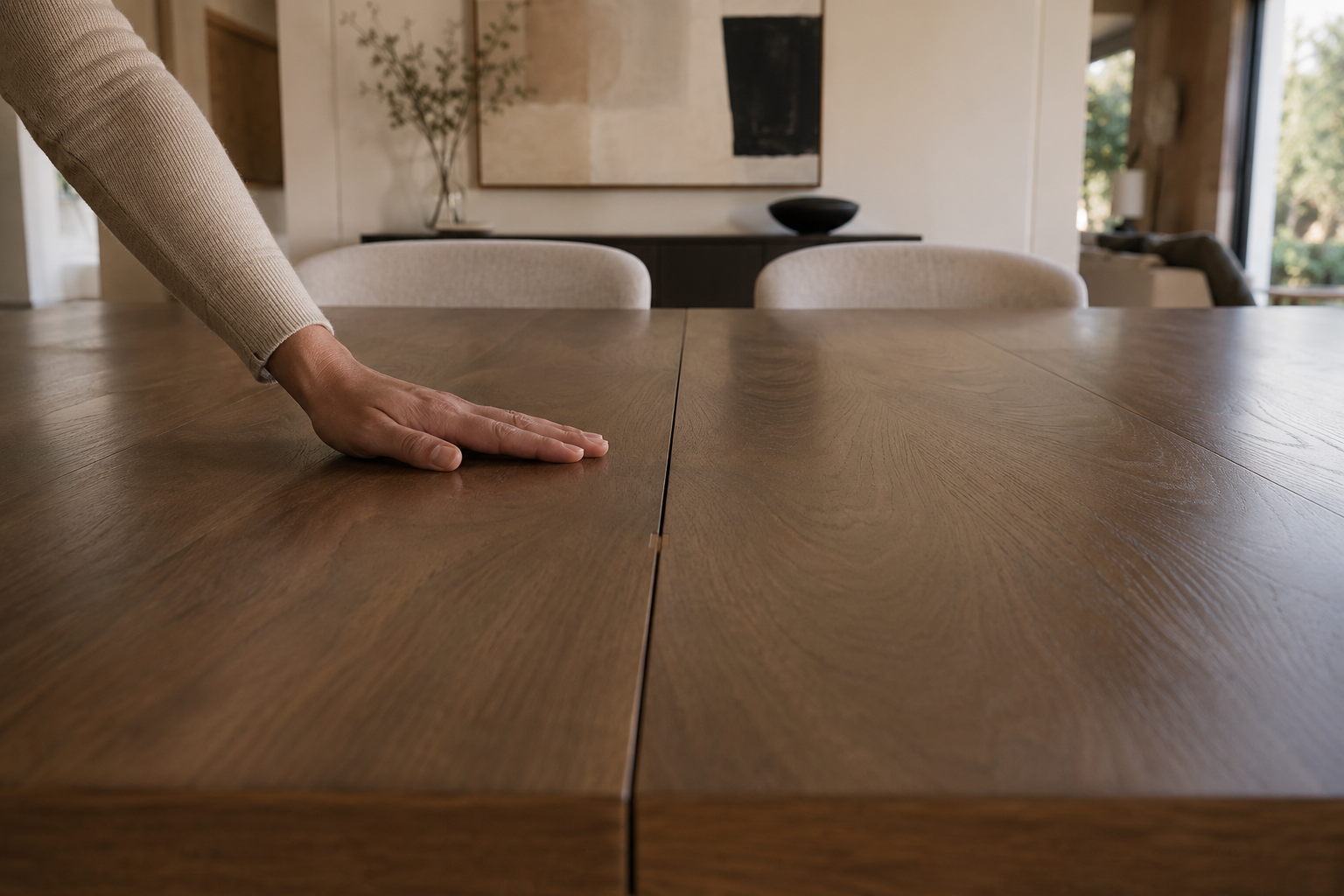

- Seam flatness test: Run your palm across the leaf seam. Any ridge or step is a tolerance/alignment signal.
- Corner-to-corner racking test: With the table extended, gently push at one corner. Twisting = low torsional rigidity.
- Slide symmetry: If one side opens faster, synchronization is weak (racking risk rises fast).
- Apron depth glance: A deeper apron (vertical depth) usually beats a thick top for stiffness.
- Span awareness: The longer the unsupported distance between legs, the more sag pressure concentrates at the center seam.
These checks are signals of load path continuity and mechanism quality.
VBU System Law: “When the load path is interrupted, the seam becomes the stress zone.”
Standards Reality Check: What ISO/BIFMA Tests vs What You Feel
Formal standards evaluate stability, strength, and durability under controlled conditions. In real homes, those same categories appear as center sag, seam steps, and binding slides. This translation bridges test intent with lived use.
| Test Intent | What Shoppers Notice | Quick In-Store Signal | Expandable Table Failure Mode |
|---|---|---|---|
| Stability | Table twists when leaned on | Corner push with table extended | Seam-Hinge Effect under torsional load |
| Strength | Feels solid, then develops a center dip | Check apron depth and mid-span support | Mid-span deflection at extension seam |
| Durability | Slides bind or drift over time | Open slowly; watch for uneven travel | Racking loosens mounts and pins |
| Dimensional tolerance | Seam ridge, dip, or visible gap | Palm-across-seam test | Tolerance stacking amplification |
| Mechanism integrity | Rough or gritty slide motion | Check synchronization of both halves | Alignment-pin shear + slide wear |
VBU insight: Standards define what must be tested. The seam and slide system reveal where expandable tables fail first.
VBU Sag Coefficient
Most shopping advice is subjective (“feels solid”). You can do better with one simple comparative metric: a quick way to estimate how much the frame behaves like a beam when extended.
This metric doesn’t replace hardware quality (synchronization, mount rigidity, pin design), but it quickly flags “thin apron + long span” designs that sag early.
Cheat Sheet: Expandable Table Failure Modes (In One Screen)
| What You Observe | What It Usually Is | Why It Happens | What To Look For |
|---|---|---|---|
| Center dips when extended | Mid-span deflection | Span increases + load path interrupted at seam | Deeper apron + center stretcher/leg + synchronized dual-rail slides |
| Leaf sits proud / below top | Leaf misalignment | Tolerance stacking + seasonal movement + worn pins | Robust alignment pins + tight slide mounting + movement-tolerant fastening |
| Gap opens in winter | Differential expansion | Wood shrinks; metal slides don’t | Hardware that allows movement; stable species/finish strategy |
| Table twists / binds | Racking (Seam-Hinge Effect) | Slides not synchronized; low torsional rigidity | Gear-driven synchronization + frame bracing + wider rail spacing |
| Leaf wear looks “different” | Material mismatch visibility | Grain/finish reflectance + uneven use + hardness mismatch | Matched veneer/grain + durable finish; see surface guide |
The seam is not cosmetic—it’s the highest-stress interface in the system.
Table of Contents
- Quick Answer: Why Expandable Tables Fail
- Baseline: Fixed vs Expandable
- The Physics of Structural Discontinuity
- Tolerance Stacking: Why Small Errors Become Big Gaps
- Center Sag: The Primary Failure Mode
- Second Moment of Area: Why Apron Depth Beats Top Thickness
- Mechanism Teardown: Why Hardware Rules
- Best vs Worst Expandable Designs
- Material Compatibility & Differential Expansion
- Failure Case Study: Big-Box “Virtual Teardown”
- VBU 60-Second Extension Audit
- FAQ: Expandable Dining Table Engineering
- Conclusion: Engineer the Seam
The Physics of Structural Discontinuity (Continuous vs Interrupted Load Path)
A one-piece fixed table behaves like a continuous beam: forces travel through the top, into the apron/frame, and down the legs. The moment you add a leaf, you introduce a seam—an interface where material continuity is replaced by hardware and alignment features. That seam is a load path interruption.
In engineering terms, the expanding surface creates structural discontinuity: the top becomes two beams that must “agree” on height, stiffness, and movement. If the mechanism or frame can rack, the seam becomes the highest-stress zone and the first place you’ll see a dip, a gap, or a step.
VBU Tech Term — Structural Discontinuity: A break in a continuous structural element (like a tabletop) that forces loads to transfer across an interface (pins, slides, brackets). Discontinuities concentrate stress and amplify deflection at the seam unless the system restores stiffness with a deeper frame, synchronized rails, and center support.
Tolerance Stacking: How a “Tiny” Error Becomes a Visible Seam Defect
Expandable tables depend on multiple interfaces aligning at once: the slide rails, mounting holes, seam pins, leaf hardware, and the wood itself (which moves seasonally). Each interface has a small manufacturing tolerance. When those small errors add up in the same direction, you get tolerance stacking: misalignment, gapping, or a leaf that sits proud/below the surface.
VBU Tech Term — Tolerance Stacking: When multiple small dimensional errors accumulate across components. Example: 1 mm slide slop + 1 mm pin offset + 2 mm seasonal movement can easily become a visible seam defect (a ridge, a step, or a gap that catches your hand).
Seam problems are rarely one “bad part.” They’re usually a system problem: multiple small mismatches acting together.
If you want an expandable table that stays flat and aligned over cycles, prioritize:
- Gear-driven synchronized dual-rail slides (prevents racking and drift)
- Deep apron (beam depth that resists mid-span deflection)
- Center stretcher or center support strategy (restores the load path at the seam)
- Movement-tolerant mounting (doesn’t fight seasonal wood movement)
If the seam is uneven in the showroom, it usually worsens at home under humidity swings and dynamic loads.
Center Sag: The Primary Failure Mode (Why the Table Dips at the Center Seam)
Center sag (the “dip in the middle”) usually appears at the geometric center because that’s where the beam experiences the highest bending moment under typical loads. When the table extends, the distance between supports (legs) increases and the center seam becomes an unsupported—or weakly supported—zone. The result is predictable: the middle deflects under its own weight and under real-life use.
What is “center sag” in extendable tables? It’s mid-span deflection concentrated at the extension seam where the load path is interrupted; poor slide synchronization and shallow aprons make it worse over use cycles. For formal table test-method context, see ISO 19682.
VBU Tech Term — Static vs Dynamic Load: Static load is a stationary object (plates, centerpieces). Dynamic load is a person leaning, pushing off, or bumping the edge. Most failure is driven by dynamic load, especially at the seam where torsional rigidity is lowest.
Dynamic load isn’t just “kids bumping the table.” In many homes, someone will brace a hand on the extended edge to stand up or stabilize themselves, and that turns the seam into a support interface. If the system racks, the table can feel unstable in a way that’s uncomfortable—and sometimes risky— which is why the same stability lens used in leaning loads, wobble, and tip-over risk for aging users applies directly to extension seams.
This is why “weight limit” claims can mislead. A table can hold a heavy static load in the middle on day one, but still fail over time when repeated leaning and torsional loads cycle the seam hardware and frame. This mid-span failure follows the same fatigue pattern seen in fastener loosening in dining chairs: cyclic movement turns tight systems into loose systems (Fastener loosening & wobble acceleration in dining chairs).
Second Moment of Area: Why Apron Depth Beats Tabletop Thickness
Many buyers focus on tabletop thickness as a proxy for strength. But stiffness is primarily governed by the frame acting as a beam—especially the apron (the vertical band under the top). In beam engineering language, stiffness is strongly influenced by the second moment of area (how material is distributed relative to the neutral axis).
VBU Tech Term — Second Moment of Area: A stiffness metric that increases dramatically when material is distributed farther from the center (neutral axis). Translation: a deeper vertical apron often increases stiffness far more than a slightly thicker tabletop.
If you want less center sag, prioritize:
- Apron depth (vertical beam) over “thick-looking” tops.
- Center stretcher/support that restores the load path when extended.
- Synchronized dual-rail hardware that prevents racking.
Mechanism Teardown: Why Hardware Rules (Leaf Types + Slide Systems)
Expandable tables fail where structure meets motion: the slide mechanism and the seam interface. Hardware defines whether the two halves open evenly, stay square, and maintain clamp/alignment over thousands of cycles. This is where “looks solid” and “is engineered” diverge.
- Gear-driven synchronized dual-rail slides — open evenly, resist racking, maintain seam squareness over cycles.
- Dual-rail ball-bearing slides + center stretcher — strong torsional resistance for medium-long spans.
- Single-rail friction slides (avoid for long spans) — high drift risk; seam behaves like a hinge under torsion.
For professional hardware context (non-competitor), browse table extension fitting ecosystems such as Hettich table extension slides.
1) Butterfly Leaf vs Drop-In Leaves (Convenience vs Load Path)
Butterfly leaves are convenient because the leaf stores inside the table. But that convenience often adds permanent weight and complexity at the center, which is already the highest-stress zone. Drop-in leaves can be removed, reducing constant stress on the mechanism when the table is closed. Engineering-wise, removable leaves can support a cleaner load path when the system is designed with robust alignment features.
2) Gear-Driven Synchronized Slides (The Gold Standard)
The best systems use gear-driven synchronized slides so both halves open at the same rate. Synchronization reduces racking—a torsional twist where one side leads and the frame binds or drifts out of square. Racking is a primary driver of mounting fastener loosening and alignment pin wear (shear stress accumulates over cycles).
VBU Tech Term — Racking: Twisting deformation where the frame loses squareness under torsional load. In expandable tables, racking shows up as binding slides, uneven seams, and accelerating hardware wear.
3) Torsional Rigidity: Why Dual-Rail Systems Are Required for Large Tables
As tables extend beyond 72 inches, torsional loads increase because the structure behaves like a longer lever. A dual-rail system increases torsional rigidity by resisting twist across a wider base. Single-rail friction slides allow one side to drift, and the seam becomes a hinge line rather than a structural interface.
Slide Mounting Tolerances & Wear Patterns (Where Misalignment Starts)
- Mount slop amplifies drift: small screw-hole clearance becomes visible seam error after cycles.
- Cantilevered loads (edge push-offs) raise torsion: the seam sees rotation + pin shear stress.
- Cyclic testing reality: repeated opening/closing + leaning is what loosens mounts (think “cycle life,” not day-one stiffness).
| Mechanism Type | How It Behaves | Common Failure Mode | Best Use Case |
|---|---|---|---|
| Single-rail friction slide | One-sided guidance; higher drift risk | Racking, binding, misalignment (Seam-Hinge Effect) | Small extensions only; avoid long spans |
| Dual-rail slide | Better symmetry and torsional resistance | Wear at mounts if frame is weak | Medium-to-large tables |
| Gear-driven synchronized dual-rail slide | Both halves open evenly (reduced racking) | Failure if mounts loosen or frame flexes | Best choice for large tables |
Best vs Worst Expandable Designs (Engineering Ranking)
Best (Choose These)
- Gear-driven synchronized dual-rail slides + deep apron + center stretcher — highest torsional rigidity; minimal racking over cycles.
- Dual-rail ball-bearing slides with drop-in leaves — reduces constant center mass; cleaner load path when closed.
- Hybrid frames (apron depth + hidden spine) designed with conservative span-to-depth geometry.
For broader table test-method context, see ISO 19682.
Worst (Avoid or Limit)
- Single-rail friction slides on spans > 60–72 in — high drift; seam acts like a hinge line under torsion.
- Thin aprons with long spans — low second moment; center dip accelerates.
- Butterfly leaf with no mid-span support — constant weight + complexity at the highest-stress zone.
Material Compatibility Pivot: Differential Expansion, Species Choice & Slide Tolerances
Differential expansion is the quiet force that turns “barely noticeable” alignment errors into visible seam gaps. Wood moves with moisture; steel slides don’t. That means the table’s frame/top is breathing seasonally while the mechanism is trying to hold a fixed geometry.
The leaf is often the highest-traffic zone during holidays and large gatherings, which makes surface performance a durability-matching problem, not a marketing-wood problem. If the finish and hardness don’t match the way your home actually uses the table, the seam area will telegraph wear and reflectance differences faster than the rest of the top—exactly the logic behind the durability vs. usage matrix for high-contact surfaces .
Material compatibility: the more a tabletop/frame changes dimension with humidity, the more likely you are to see seam defects unless the design allows controlled movement. Species stability, construction method (solid vs veneer/engineered core), and mounting strategy determine whether the mechanism “fights” the wood or “floats” with it.
Species Snapshot (Why White Oak “Acts” Different Than Walnut)
Typical wood movement is often summarized as radial/tangential shrinkage from green to oven-dry. For example, reference tables commonly list White Oak around ~10.5% tangential and ~5.6% radial, while Black Walnut is often listed around ~7.8% tangential and ~5.5% radial (species vary, but the stability pattern is consistent). If you want a readable reference, see an educational wood-movement guide like Dimensional Changes in Wood (OK State Extension).
White Oak vs “Engineered Walnut” (What That Usually Means)
- Solid wood walnut: moves seasonally but can be stable when properly constructed and acclimated.
- “Engineered walnut” tops: often means walnut veneer over a stable core (plywood/MDF). The veneer still moves slightly, but the core reduces total movement—helpful for seam alignment.
- Practical outcome: a stable core can reduce seam changes, but only if the hardware/mounting doesn’t lock the system so tightly that the veneer telegraphs stress or splits.
Differential expansion in one sentence: When humidity drops, wood shrinks across the grain; if the extension slides and alignment pins are rigidly fixed with no movement strategy, the seam gap grows and pins see higher shear stress during racking.
Failure Case Study (Hypothetical): The Big-Box “Virtual Teardown”
Consider a common big-box expandable table marketed as “solid” because it has a thick-looking top and a wide footprint: 72 in closed → 96 in extended, shallow apron, single-rail friction slides, and two small alignment pins per leaf. It may look fine in a showroom. Here’s why it often fails at home.
Virtual Teardown: Why This Design Racks and Sags
- Shallow apron + long span: low second moment (I). The frame is a shallow beam trying to resist a large bending moment.
- Single-rail guidance: one side leads during opening/closing, introducing torsion. This is where the Seam-Hinge Effect starts.
- Pin placement too close to the seam edge: pins carry higher shear stress under corner push-offs; holes ovalize; alignment gets worse.
- Mounting holes “stack” tolerance: slight misdrills + slide slop accumulate; seam becomes a visible ridge/step.
- Cyclic reality: repeated open/close + lean + bump cycles loosen mounts the same way chair fasteners loosen under racking.
The point isn’t to shame “big-box.” It’s to show the engineering: interrupted load path + low torsional rigidity + tolerance stacking = predictable seam failure.
Hidden Heroes: Aprons & Stretchers (The Internal Skeleton)
The difference between a table that “feels solid” and one that develops seam sag is usually invisible: the internal frame geometry. Aprons and stretchers are the skeleton that keeps the surface behaving like a beam—especially when the load path is interrupted.
Span-to-Depth Ratio: Why Thin Aprons Sag
A long span with a shallow vertical beam is a sag recipe. A deeper apron increases stiffness efficiently because it improves the frame’s resistance to bending. Many modern tables minimize apron depth for style—then try to compensate with a thicker top. Structurally, that often fails when extended because the seam needs beam depth and continuity, not just surface mass.
The Center Stretcher: Small Beam, Big Stiffness
A hidden center stretcher restores the load path at the seam. It acts like a support spine under the mid-span zone, increasing stiffness more efficiently than simply using “solid wood everywhere.” If your extension design pushes seating toward the center, a stretcher is often the difference between “works for years” and “sags in months.”
Cross-cluster connection: Similar to sofa chassis engineering, the internal skeleton dictates the external lifespan. See: Sofa chassis load path: kiln-dried hardwoods vs furniture-grade plywood.
VBU Quality Audit: The 60-Second “Extension Seam” Test
A fast diagnostic to detect sag risk, racking risk, tolerance stacking symptoms, and slide quality before you buy.
Step-by-Step Audit (No Tools Required)
- 1) Extend fully and stop halfway: Pause mid-extension. If the halves drift out of square or hesitate unevenly, the slide system lacks synchronization.
- 2) Palm seam test: Run your hand across the center seam. A ridge, dip, or step indicates tolerance stacking or weak mid-span support.
- 3) Corner push test: With the table extended, gently push down on one corner. Any visible twist = low torsional rigidity (Seam-Hinge Effect risk).
- 4) Visual apron depth check: Look underneath. Shallow aprons paired with long spans predict sag—no matter how thick the top looks.
- 5) Leaf handling check: Drop-in leaves should seat without forcing. If alignment requires pressure, pins and slides will wear quickly.
This audit identifies system weaknesses, not cosmetic issues. If it fails here, it will worsen under seasonal movement and dynamic use. For formal test-method reading (stability/strength/durability), see ISO 19682.
Part of the Dining Engineering Series : Sit Duration → Geometry → Interface → Joint Torque → Surface Wear → Floor PSI → Access Geometry → Expandable Mechanisms
FAQ: Expandable Dining Table Engineering
Why do expandable dining tables sag at the center seam?
Because the leaf seam interrupts the load path. When the span increases, the center becomes the highest bending zone. Without a deep apron, synchronized slides, or a center stretcher, mid-span deflection concentrates at the seam.
Why does my expandable dining table sag in the middle (center sag/dip)?
“Center sag” is mid-span deflection that concentrates where the extension seam weakens stiffness and torsional rigidity. It accelerates under dynamic use (leaning, push-offs) and worsens when the frame is shallow (low VBU Sag Coefficient) or the slides allow racking.
Is a thicker tabletop enough to prevent center sag?
Usually no. Stiffness comes primarily from the frame acting as a beam. Apron depth, a center stretcher, and slide synchronization matter far more than adding surface thickness.
What causes leaf misalignment over time (leaf sits proud / seam step / seam gap)?
Tolerance stacking: small errors in slide play, pin placement, mounting slop, and seasonal wood movement accumulate into visible gaps or height steps. Example: 1 mm slide slop + 1 mm pin offset + 2 mm seasonal movement can become a ridge you can feel.
How do I fix a leaf misalignment or seam gap?
Reduce tolerance stacking: tighten or re-square slide mounts, replace worn alignment pins, and ensure the design allows seasonal movement (avoid over-constraining the top with rigid fasteners across the grain). If the seam-hinge effect is present, upgrading slide quality or adding mid-span support is the real fix.
Why do some expandable tables rack or bind when opening?
Because the slides are not synchronized or the frame is torsionally weak. When one side leads, torsional forces twist the frame, increasing pin shear stress and accelerating hardware wear and seam failure.
What is the best slide mechanism for an extendable dining table?
Gear-driven synchronized dual-rail slides paired with a stiff internal frame (deep apron + center stretcher) consistently perform best over cycles, because they resist racking and keep the seam square.
Are butterfly leaves less durable than drop-in leaves?
Not inherently—but butterfly leaves add constant center weight and mechanism complexity at the highest-stress zone. For long spans, a removable drop-in leaf with robust alignment and synchronized slides often lasts longer.
How can I tell if an expandable table is engineered well in a showroom?
Extend it fully, check seam flatness, push a corner gently, and watch the slides. Any drift, twist, binding, or uneven seam is a structural signal—not a showroom fluke.
Conclusion: Engineer the Seam, Not the Illusion
Expandable dining tables don’t fail because they “move.” They fail because the seam is treated as cosmetic instead of structural. When a table becomes two beams pretending to be one, physics takes over: mid-span deflection, tolerance stacking, and racking concentrate stress at the leaf interface.
The fix is not marketing thickness or exotic wood names. The fix is load path continuity: synchronized slides, deeper aprons, restored mid-span support, and tolerance-aware design that respects seasonal movement.
If you engineer the seam correctly, an expandable table can behave like a single structure. If you don’t, the center seam will always tell the truth.
VBU Final Rule: You don’t buy an expandable table for how it looks closed. You buy it for how it behaves when extended.
