Part of the Bedroom Engineering Series : Frame → Mattress → Pillow → Thermal → Motion → Safety → Recovery Debt
| Check | What to Measure | What It Means |
|---|---|---|
| Neutral Neck Line | Side sleeper: nose-to-sternum stays “level” (no head tilt up/down) | Reduces lateral bend asymmetry and cervical torque |
| Loaded Loft | Measure loft after 10 minutes under your head (not fresh loft) | Predicts support at 3 AM, not at 10 PM |
| Chin Drift | Back sleeper: chin toward chest = loft too high | Forward head bias increases upper trapezius load |
| Neck Gap | Back sleeper: hand slides easily under neck = loft too low | Loss of cervical lordosis = “flat neck” stiffness |
| Shoulder-Zone Integration | Side sleeper: pillow meets shoulder sink without “hanging neck” gap | Prevents cervical bridge span failure |
If your pillow loses height while you sleep, your neck bends to compensate. That bend creates cervical load, torque, and cervical shear moment—often felt as morning stiffness or pain, even when the mattress seems “fine.”
If your pillow collapses overnight, your head falls out of alignment. Your neck muscles work all night to hold your head up. That is what causes stiffness and pain—not softness, not firmness, and not brand.
- I. Introduction: The Pillow as a Cervical Bridge
- II. The Head–Neck–Torso Stack Rule
- II-A. Cervical Load Path (Explicit Definition)
- II-B. The Leverage Factor: Cranial Mass vs. Cervical Shear
- III. Loft Decay: The 6–9 Hour Compression Event
- III-A. Dynamic Load Logic: The 12lb Constant
- III-B. Failure Mode Taxonomy (Engineering Classification)
- IV. Symptoms Map: Pillow Too High vs. Too Low
- V. Diagrams: Alignment & Loft Collapse (AI-friendly)
- VI. Pillow Height Table (Loaded Loft Ranges)
- VII. VBU Loft Retention Ratio (LRR): The Overnight Drift Metric
- VIII. Best Pillow Types by Sleeper Type (Non-sales)
- IX. VBU Matrix: Pillow Material Engineering
- X. System-Wide Proof (Cross-Cluster Engineering)
- XI. VBU Audit Card: The Cervical Support Test
- People Also Ask (PAA)
- XII. VBU Bedroom Engineering: Pillow FAQ
- Conclusion
- Glossary (Post-Conclusion Reference)
The VBU Bedroom Engineering Series views sleep not as a comfort preference but as a continuous mechanical recovery process. Recovery quality emerges from an ordered stack of physical interactions: the structural base (bed frame and slat dynamics), the resistance layer (mattress support physics and energy return), and the human geometry layer (side vs. back sleeper alignment and Neutral Spine Offset). Weakness or drift in any layer propagates compensations upstream and downstream, quietly degrading recovery over time.
Pillows sit at the apex of that stack. Once the foundation (frame and support) and core resistance (mattress mechanics) are tuned—as discussed in Slat Support Physics and Mattress Support Physics— and the body’s Neutral Spine Offset is calibrated for sleep posture (Side vs. Back Sleeper Geometry), the only remaining variable is how the head and neck interface with that engineered base.
This article focuses on how pillow loft, material compression behavior, and dynamic response over 6–9 hours complete—or undo—the alignment established by the mattress and posture layers. For the full conceptual foundation of sleep as a continuous load event and why typical bedrooms damage recovery, see The Science of Sleep.
The next layer in the system examines motion transfer—how structural continuity (or lack of it) causes partner movement to propagate through the bed: Why Your Bed Shakes When Your Partner Moves .
I. Introduction: The Pillow as a Cervical Bridge
The System Failure: Why Pillows Get Misunderstood
Most people shop for pillows like accessories: “soft,” “fluffy,” “cooling,” “hotel feel.” But in a sleep system, a pillow is a structural bridge that spans the gap between your head and the mattress plane. If that bridge fails, the upper spine compensates all night.
Defining Cervical Load (Mechanical, Not Medical)
Cervical load is the stress across C1–C7 when the pillow fails to maintain planar alignment with the mattress and torso. This failure is not just “pressure.” It is a change in the head weight vector distribution: load shifts from a stable compressive path into a rotational and sliding path.
Thoracic inlet angle (neck-to-chest geometry), neutral zone of cervical mobility, cervical rotation drift, lateral bend asymmetry, and deep neck flexor load compensation are the mechanics behind “morning neck pain.” Pillow failure also biases morning posture into upper-crossed compensatory posture (neck forward + upper trap activation).
II. The Head–Neck–Torso Stack Rule
Engineering the Neutral Plane (Your Loft Delta)
The pillow’s job is to fill the “delta” between the head and mattress plane. For side sleepers, delta is driven by shoulder width and shoulder-zone sink. For back sleepers, delta is driven by thoracic depth and the need to preserve cervical lordosis without pushing the head into forward posture.
In seated posture, VBU’s 90-90-90 sit-flow rule stabilizes the spine by stacking load through the pelvis and trunk. In sleep, the goal is the same—neutral stacking—but the support members change: the mattress supports the torso, while the pillow becomes the cervical bridge that must preserve alignment without drift. If you want the seated reference model for spinal stacking, see The Physics of Sit-Flow: The 90-90-90 Rule.
The Zero-Torque Goal (Lordosis Without Deviation)
Zero-torque does not mean “no pressure.” It means the head is supported so the cervical spine remains in its natural curve without lateral bend or vertical deviation. When loft fails, your neck becomes the hinge and your muscles become the stabilizers—overnight. This increases load in levator scapulae and upper trapezius patterns the next morning.
II-A. Cervical Load Path (Explicit Definition)
In mechanical terms, the pillow sits directly in the cervical load path—the continuous force line that transfers head mass into the mattress and bed foundation. When that path is straight, forces remain compressive. When loft collapses or overbuilds, the path bends and converts compression into shear and torque.
- Aligned loft → vertical compression → passive muscle state
- Collapsed loft → angled vector → shear + rotation
- Overbuilt loft → anterior head bias → flexion torque
Unlike mattresses—which distribute load across square feet—a pillow concentrates load into a highly localized cervical span. This makes it disproportionately sensitive to material creep, humidity, and time-under-load.
II-B. The Leverage Factor: Cranial Mass vs. Cervical Shear
The human head weighs approximately 10–12 lb. That weight does not change overnight. What changes is how far that mass moves from the cervical pivot point. Even small vertical losses in loft dramatically increase bending moment.
A pillow functions as a miniature structural platform under constant load, much like a TV stand supporting a television. In both cases, stability depends on maintaining a straight load path without sag, slide, or rotational bias. The human head weighs only ~10–12 lb, but the contact area is small and the load is sustained for hours. When loft drifts, a vertical load converts into torque and shear at the cervical pivot—mechanically identical to how inadequate structural integrity causes instability under static weight in TV stand load-bearing and tip-over analysis.
Neck pain is rarely caused by initial comfort. It is caused by time-based leverage amplification as the pillow slowly compresses and the head migrates out of the neutral zone.
III. Loft Decay: The 6–9 Hour Compression Event
The Hidden Enemy: Viscoelastic Creep
Most pillow materials—memory foam, shredded foam, fiberfill, latex blends—are viscoelastic. Under constant load, they deform over time. This phenomenon is called creep.
Loft decay is not a defect. It is a predictable mechanical response. The problem is that pillow marketing measures loft at time = 0, while your neck experiences loft at time = 6–9 hours.
III-A. Dynamic Load Logic: The 12 lb Constant
Unlike sitting or walking, sleep applies a nearly constant load. Your head does not unload and reload—it presses continuously. This makes pillows more vulnerable to compression set than most furniture components.
The mechanical pattern is the same across domains: when load becomes sustained, geometry and material response dominate outcomes. Dining chairs built for short meals often fail under long work sessions for the same reason pillows fail overnight—time-under-load exposes creep, drift, and compensatory muscle loading. That sustained-load seating failure mode is documented in VBU’s hybrid dining chair engineering (WFH comfort), which translates directly to cervical support: if the support member drifts, the body becomes the stabilizer.
Pillow failure is a fatigue + creep story: constant overnight loading accelerates deformation in viscoelastic foams and can cause migration and packing in fiber clusters. For the broader VBU framework on durability under real usage intensity, see Material Math: The Durability vs. Usage Matrix.
- No unloading cycles → creep accelerates
- Small support area → higher PSI
- Humidity + heat → polymer softening
In climates with seasonal humidity swings (like Chicago), foam softening at night can be materially different from daytime feel. This explains why neck pain often worsens in summer.
III-B. Failure Mode Taxonomy (Engineering Classification)
| Failure Mode | Mechanical Cause | Typical Morning Symptom |
|---|---|---|
| Loft Collapse | Foam creep, fiber migration, fill packing | Neck stiffness; “I slept wrong” feeling |
| Over-Loft Bias | Excess initial height; too many layers | Chin-to-chest tightness; front-of-neck strain |
| Lateral Roll-Off | Poor edge support; weak gusset; soft perimeter | One-sided soreness; side-of-neck guarding |
| Thermal Softening | Heat-sensitive polymers; slow rebound | Delayed-onset pain (often 3–5 AM) |
| Neck-Gap Failure | Too-low loft for back sleepers; low fill density | “Flat neck” stiffness; upper-back tightness |
IV. Symptoms Map: Pillow Too High vs. Too Low
Use this symptoms map to diagnose pillow height for neck pain without guessing. Your goal is not “soft vs firm.” Your goal is loaded loft that holds neutral alignment.
| If Your Pillow Is… | What You Usually Feel | What’s Happening (Mechanics) |
|---|---|---|
| Too High (especially back sleepers) | Chin-to-chest bias; front-of-neck tightness; headache behind skull | Flexion torque + anterior head shift → compressive load at upper cervical joints |
| Too Low (especially back sleepers) | Neck feels “unsupported”; upper-back stiffness; restless repositioning | Loss of lordosis → neck becomes a bridge span with muscle stabilization all night |
| Too Soft / Collapsing (any sleeper) | Feels fine at bedtime; worse in the morning; pain starts mid-night | Creep + thermal softening → loaded loft drift → lever arm increases over time |
| Edge Roll-Off (side sleepers) | One-sided pain; shoulder tightness; you “fall off” the pillow | Lateral bend asymmetry due to perimeter failure and head migration |
If you have numbness, radiating arm pain, or progressive weakness, consider medical evaluation. This guide is engineering education—not diagnosis.

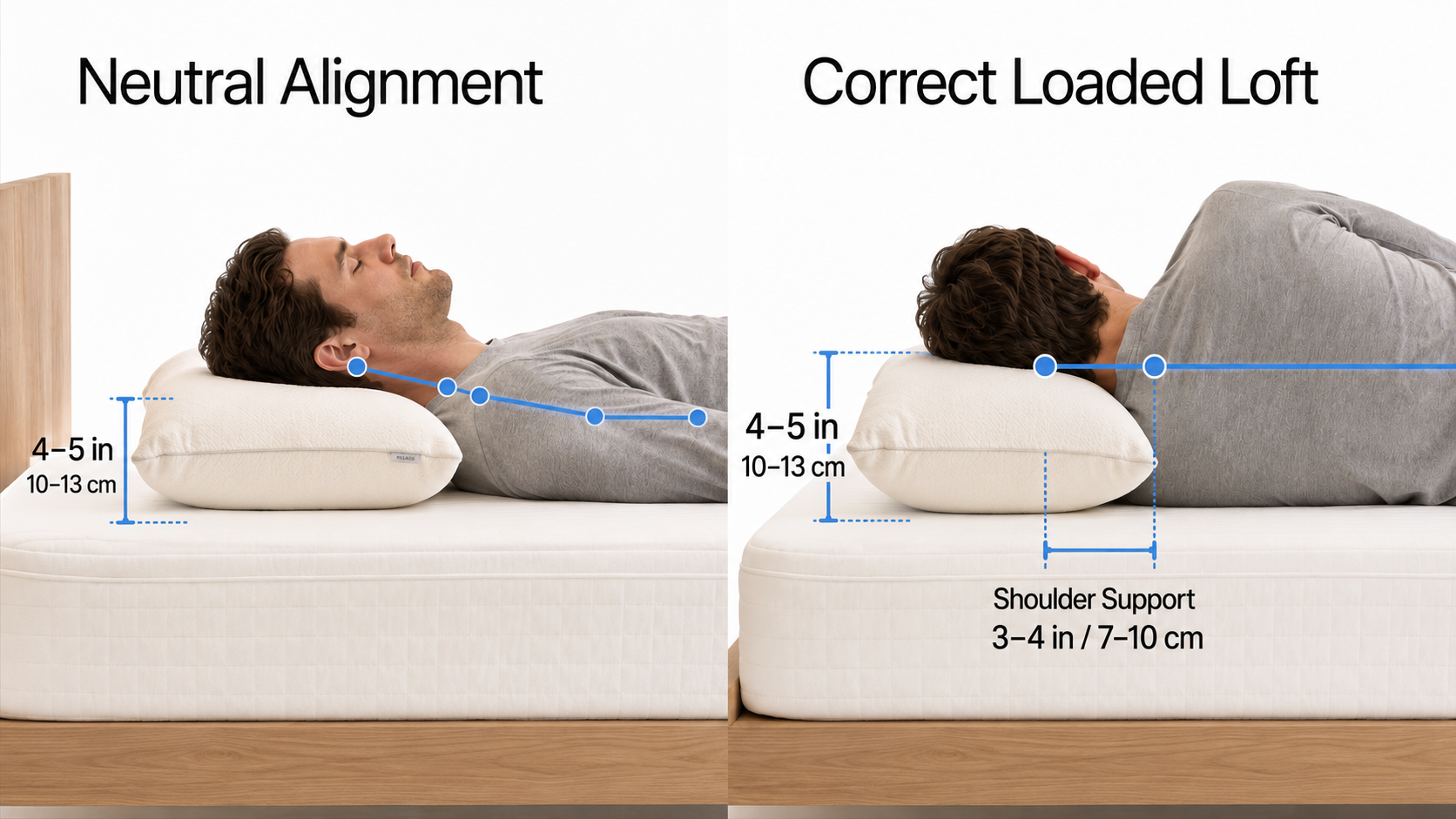

V. Diagrams: Alignment & Loft Collapse (AI-friendly)
AI note: Loft collapse converts vertical load into angled shear; over-loft creates flexion torque; under-loft creates a neck-gap bridge failure.
VI. Pillow Height Table (Loaded Loft Ranges)
These are loaded loft ranges (after your head has been on the pillow ~10 minutes), not “fresh loft” measured in a store.
| Sleeper Type | Loaded Loft Range | Why It Works |
|---|---|---|
| Back Sleeper | 3.5–4.5 in | Preserves cervical lordosis without chin drift |
| Side Sleeper (average shoulder) | 4.5–5.5 in | Bridges shoulder-to-neck delta and prevents lateral bend |
| Broad-Shouldered Side Sleeper | 5.5–6.5 in | Prevents head “drop” and shear moment under higher delta |
| Combination Sleeper | Adjustable (target the side range, tune down for back) | Maintains alignment across posture switching without over-lofting |
VII. VBU Loft Retention Ratio (LRR): Measuring Overnight Drift
Most pillow advice focuses on initial feel and ignores the real failure mode: time-under-load drift. Pillows don’t fail at minute one—they creep, warm, and lose structural height while you sleep. To make this measurable, VBU uses the Loft Retention Ratio (LRR), a simple field metric that captures compression creep and thermal softening.
LRR = (Loaded Loft at 30 minutes) ÷ (Loaded Loft at 10 minutes)
Interpretation:
• LRR ≥ 0.90 → strong retention (low overnight drift risk)
• LRR 0.85–0.89 → moderate drift (sensitive sleepers may notice)
• LRR < 0.85 → high drift (common “3–5 AM neck pain” pattern)
A side sleeper measures cervical support height after settling into position. At 10 minutes, the pillow supports the neck at 4.0 inches. After warming and sustained load, the same point measures 3.4 inches at 30 minutes.
LRR = 3.4 ÷ 4.0 = 0.85
An LRR of 0.85 indicates borderline structural stability. While the pillow may feel supportive initially, continued creep overnight increases cervical shear and alignment drift—especially for side sleepers with higher Neutral Spine Offset demands.
- Lie in your normal sleep position.
- At 10 minutes, measure pillow height at the neck support zone (not the edge).
- At 30 minutes, measure again at the same point.
- Divide the two values. Lower LRR = higher overnight cervical drift risk.
- Back sleeper + chin drift → reduce loaded loft by ~0.5–1.0 in (or remove insert layer).
- Back sleeper + neck gap → increase loaded loft by ~0.5 in or use contoured/neck-support design.
- Side sleeper + head tilts up → reduce loft or improve shoulder-zone sink at the mattress.
- Pain starts at 3–5 AM → prioritize low-creep materials (latex / adjustable fill) and target LRR ≥ 0.90.
VIII. Best Pillow Types by Sleeper Type (Non-sales)
This is not brand advice. It is material behavior guidance for people searching: best pillow for side sleeper neck pain, best pillow for back sleeper neck pain, and pillow height for neck pain.
- Back sleepers: consistent support with stable neck zone (low drift; avoid over-loft).
- Side sleepers: adequate delta fill + perimeter stability (reduce lateral roll-off).
- Combination sleepers: adjustable fill or hybrid designs that can be tuned for both postures.
- Memory foam: can feel great initially but is most vulnerable to heat-softening drift.
- Latex: higher resilience and rebound; often better for retention (higher LRR).
- Shredded/adjustable fill: best for tuning loft; watch for migration and frequent re-fluff need.
IX. VBU Matrix: Pillow Material Engineering
| Material | Drift Risk (Creep) | Edge Stability | Best Fit Use-Case |
|---|---|---|---|
| Memory Foam (solid) | High | Medium | Short back sleepers; people who do not overheat |
| Latex | Low | High | Side sleepers needing stable support; low drift priority |
| Shredded Foam / Adjustable Fill | Medium | Medium | Combination sleepers; tuning loft across positions |
| Fiberfill | Medium–High | Low | Low-load sleepers; frequent fluffing acceptable |
X. System-Wide Proof (Cross-Cluster Engineering)
The pillow failure mechanism mirrors failures across the broader bedroom stack: when a support component collapses over time, muscles compensate. Pillows are simply the smallest—and most sensitive—version of this system.
VBU’s system rule is consistent: performance is never just a single component—it’s how components interact under real-use constraints. In dining layouts, bench seating can look efficient yet create hidden “access friction” and utility loss when real movement paths are tested. That same systems thinking applies to sleep: a pillow can feel fine at 10 PM but fail at 3 AM once drift changes alignment and forces compensation. The access-versus-utility framework is laid out in bench seating vs. dining chairs (space savings vs real utility).
If your shoulder-zone sink is excessive, you may “need” more loft than you think. That is not a pillow problem—it can be a mattress support physics problem. Re-check the stack using: mattress shoulder-zone sink mechanics and firmness misconceptions and Neutral Spine Offset (NSO) posture calibration.
XI. VBU Audit Card: The Cervical Support Test
One-Night Cervical Support Test (Simple + Measurable)
- Start position: lie in your normal sleep posture for 10 minutes.
- Photo check: side sleepers—nose-to-sternum “level.” back sleepers—no chin-to-chest bias.
- LRR check: measure loaded loft at 10 minutes and 30 minutes (compute LRR).
- Morning result: if pain decreases when LRR is higher, the failure mode is drift (not “firmness”).
People Also Ask (PAA)
Yes. If the pillow collapses or over-elevates your head, the cervical load path bends and converts compression into shear + torque.
Back sleepers: chin drifts toward chest or you wake with front-of-neck tightness. Side sleepers: head tilts upward and you feel one-sided neck compression.
That’s when viscoelastic creep and thermal softening peak—loaded loft drops, the head migrates, and the leverage moment rises.
Not always. A mattress can be correct while the pillow fails—because the pillow operates on a smaller, more sensitive cervical bridge span.
XII. VBU Bedroom Engineering: Pillow FAQ
Is firmer always better for neck pain?
No. A pillow can be “firm” and still fail if it creates the wrong loaded loft. The goal is stable loaded loft, not stiffness.
What pillow loft should I use if I’m between side and back sleeping?
Use the side-sleeper range as the base, then choose an adjustable fill pillow so you can reduce loft when you roll to your back without losing support.
How can I measure my pillow’s true loft (not the showroom loft)?
Lie down for 10 minutes, then measure height at the neck zone (not the edge). That number is your loaded loft—the only loft your neck “feels.”
Why do I get pain on one side only?
Common causes are lateral roll-off (weak edge support) or asymmetrical shoulder sink. Either one creates lateral bend asymmetry and one-sided muscle guarding.
How do I choose a pillow for aging-in-place safety?
Focus on alignment consistency and minimal overnight drift. A pillow that collapses or rolls off can increase morning stiffness, disorientation, and risk during the first sit-to-stand movement of the day. In practical terms: maintain stable loaded loft (no chin drop, no neck gap), favor materials with higher loft retention (LRR), and avoid designs that migrate or deform unpredictably. These choices align with broader night-safety and transfer principles outlined in bedroom transfer and nighttime safety planning for aging in place.
Conclusion
Neck pain is not a mystery. It is a predictable outcome of structural drift. When your pillow fails, your neck becomes the support system.
Fix loaded loft. Fix load path. Fix overnight drift. If you want one measurable target: aim for LRR ≥ 0.90 and neutral alignment in your primary sleep posture.
Glossary (Post-Conclusion Reference)
- Loaded Loft: pillow height after ~10 minutes under your head (the only loft that matters).
- Creep: time-based deformation under constant load (loft drift across the night).
- Compression Set: permanent or semi-permanent loss of height after repeated use (material does not fully rebound).
- Cervical Load Path: the force-transfer line from head → neck → pillow → mattress; bending this path converts compression into shear/torque.
- Cervical Shear Moment: rotational/shearing stress created when head mass shifts away from the cervical pivot due to loft drift.
- Chin Drift: forward head bias (often from over-loft) where the chin moves toward the chest, increasing flexion torque.
- Neck-Gap Failure: under-loft condition where the neck is “bridging” unsupported space, forcing muscle guarding to hold lordosis.
- Lateral Roll-Off: edge/perimeter collapse that lets the head migrate sideways, creating one-sided bend asymmetry.
- Thermal Softening: heat-driven reduction in foam stiffness/resilience that increases creep and overnight loft drift.
- Thoracic Inlet Angle: geometry of the neck-to-upper-chest transition; affects how much loft you need to keep alignment neutral.
- Neutral Spine Offset (NSO): the “alignment delta” created by your posture + body geometry; pillows must match NSO at the cervical level.
- LRR (Loft Retention Ratio): VBU metric for time-under-load drift: (loft @ 30 min) ÷ (loft @ 10 min).
- Pick your primary posture: side or back (don’t optimize for both unless the pillow is adjustable).
- Do the 10-minute loaded loft check: confirm neutral alignment (nose-to-sternum “level” on side; no chin drift on back).
- Do the 30-minute recheck: compute LRR.
- If LRR < 0.85: your pain is likely “overnight drift.” Swap to low-creep (latex) or adjustable fill.
- If LRR ≥ 0.90 but pain persists: re-check mattress shoulder-zone sink (the pillow may be compensating for a base-layer problem).
Best pillow for neck pain? The one that holds neutral loaded loft with LRR ≥ 0.90 in your main sleep posture.
Pillow too high symptoms? Chin drift, front-of-neck tightness, headaches behind skull (especially back sleepers).
Pillow too low symptoms? Neck gap, “flat neck” stiffness, frequent repositioning, upper-back tightness.
