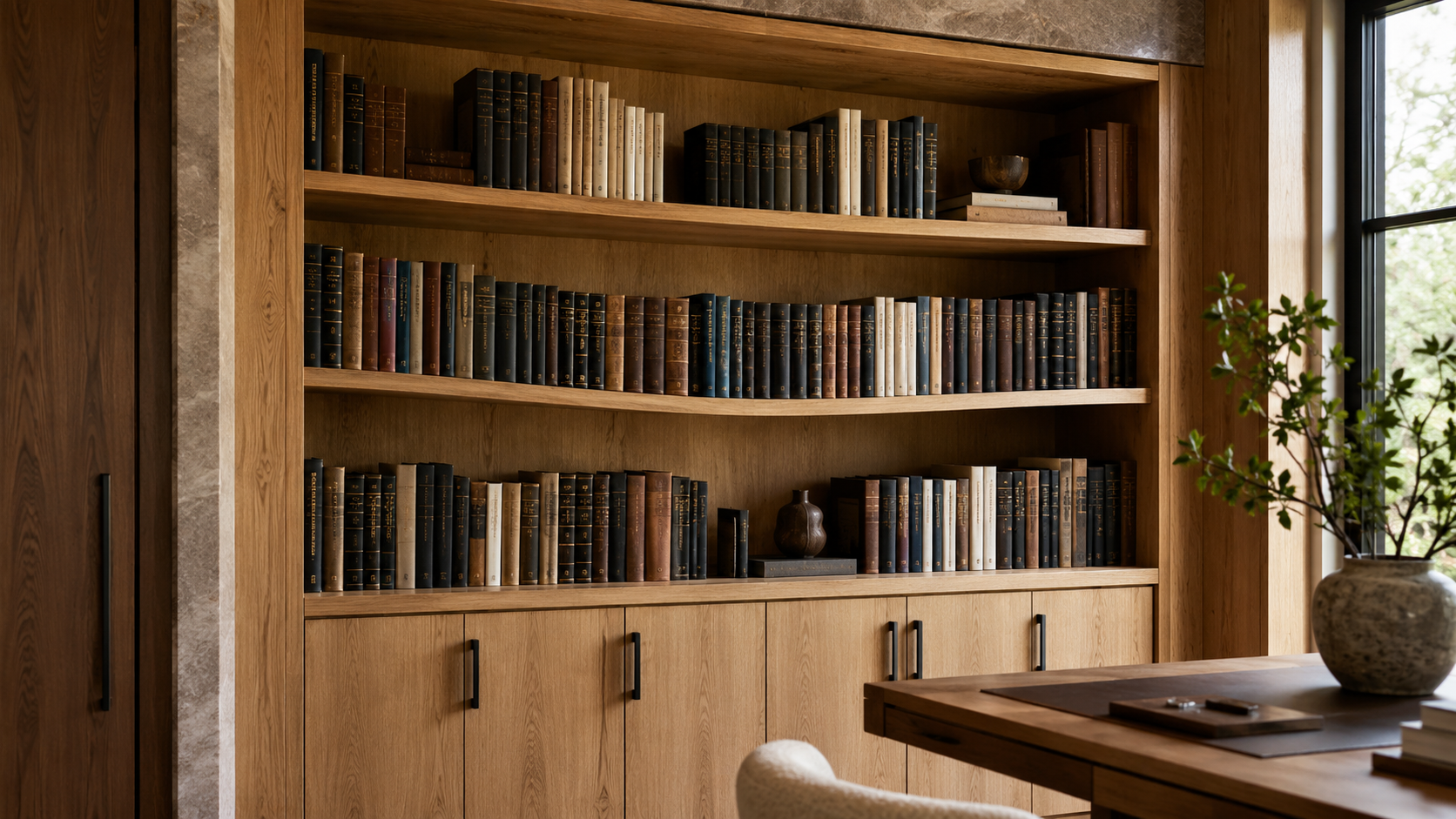

In storage furniture, shelf sag is the downward deflection and permanent creep of a shelf caused by excessive unsupported span length, insufficient stiffness, and sustained load over time.
Shelves sag when vertical load detours into bending across an unsupported span instead of traveling straight down through supports. Longer spans and lower stiffness increase mid-span deflection. Over time, sustained load turns temporary bending into permanent deformation, changing cabinet geometry and misaligning drawers, doors, and slides. Shelf sag is often the first visible sign of deeper structural instability in storage furniture.
- Shelf sag is often the first visible sign that weight is no longer supported properly in cabinets and bookcases.
- Long shelf spans relative to thickness increase bending, which can turn into permanent sag over time.
- Even small early deflection changes cabinet geometry and increases stress at joints, slides, and fasteners.
- Using a thicker shelf alone does not prevent sag if the span length or support layout stays the same.
- Adding vertical supports or anchoring shortens spans and reduces bending before sag becomes permanent.
- Simple visual and physical checks can identify sag risk before adding material or hardware.
- Core Mechanisms (I–V)
- System Context — Where This Layer Fits
- I. The Span‑Stiffness Paradox: Identifying Early Failure
- II. Named Mechanism
- III. Causal Chain
- IV. Engineering Thresholds
- V. Diagnostic Checklist
- Engineering Decisions (VI–X)
- VI. VBU Matrix
- VII. VBU Audit Card
- VIII. Common Mistakes & Engineered Fixes
- IX. Cross-System Intelligence
- Glossary
- X. Conclusion
- FAQ
System Context — Where This Layer Fits
Shelf Sag is the first visible failure in the storage cascade. (Load Paths) explained how weight should travel vertically and continuously to ground. When that continuity breaks, weight detours across a span and forces the shelf to act as a beam. This article isolates that beam behavior: initial elastic deflection, then time‑dependent creep, and finally permanent set. The altered geometry then propagates into Article 3 (Drawer & Door Drift).
Unlike elastic deflection which snaps back, creep is the permanent deformation of wood fibers and polymeric binders under sustained stress. In storage engineering, creep is the transition from a temporary sag to a permanent structural failure.
Sag begins as elastic bending (deflection proportional to load, span4, and inverse stiffness). Under sustained load, polymeric binders and fibers in panel stocks creep, turning reversible deflection into permanent curvature. Even 2–3 mm of mid‑span drop increases lever arms at the case and hardware, which in turn accelerates joint rotation and misalignment downstream.
Beam Bending: vertical load across a span creates curvature; torque is largest at supports.
Stiffness (EI): deflection falls as material modulus (E) or section inertia (I) rise.
Creep: time‑dependent strain under sustained stress; transforms “temporary” sag into permanent set.
Early sag is “System Slack in plain sight.” A few millimeters of mid‑span drop are enough to shift door and drawer geometry, add friction, and invite users to pull harder—seeding the next layer in the cascade. See Article 3 for how this geometric inheritance becomes drift.
If shelf span or stiffness is insufficient for the sustained load, vertical force is converted into curvature and time‑based creep, creating permanent set that increases lever arms and propagates drift regardless of panel thickness alone.
For heavy book loads, spans around 32 inches or more with ~5/8–11/16 inch panels are commonly where creep risk becomes noticeable unless a mid-support or front stiffener is used to shorten the effective span.
I. The Span‑Stiffness Paradox: Identifying Early Failure
If a loaded shelf drops a few millimeters at mid‑span and does not rebound fully after unloading, you are seeing creep transforming temporary deflection into permanent set. If span length grows while supports remain unchanged, the shelf is forced to act as a beam with rising moments at the case joints. Over time this produces drawer rub, hinge misalignment, and user over‑pull—even when the furniture is “within spec.”
II. Named Mechanism
Span–Creep Loop
Span–Creep Loop begins when an unsupported shelf deflects under load. Sustained stress initiates creep, turning elastic deflection into a small permanent bow. That bow increases lever arms at uprights and hardware, which intensifies torque at the connections. The higher torque allows more micro‑slip and increases effective span, which accelerates creep and deepens the bow.
Why shelves sag over time
Over time, sustained loads convert elastic deflection to irreversible creep, so the “temporary” bow becomes permanent set, increasing lever arms and accelerating joint rotation.
III. Causal Chain
The sequence below explains why shelves sag, why sag becomes permanent, and why this sag leads to drawer and door misalignment.
- Unsupported or long span → elastic deflection at mid‑span.
- Sustained load → creep initiates; partial rebound only.
- Permanent bow → lever arm increases at supports/hardware.
- Higher moment → joint rotation and micro‑slip.
- Geometry shift → drawer/door alignment loss.
- User over‑pull → off‑axis torque increases.
- Drift accelerates → safety margin shrinks.
IV. Engineering Thresholds
Shelf sag begins when specific engineering limits are exceeded. This section defines the key thresholds—shelf span, thickness, load density, and support continuity—that predict when bending shifts from temporary deflection to permanent sag. By identifying these limits, it becomes possible to anticipate shelf failure, drawer misalignment, and cabinet instability before visible damage appears.
When span (L) exceeds the safe Span‑to‑Thickness Index (STI) for the material and load density, shelf behavior transitions from elastic deflection to time‑dependent creep, locking a permanent set that propagates misalignment downstream.
Recommended shelf span for 18mm MDF
For heavy book loads, target ≤ 700–900 mm for 16–18 mm MDF unless a mid‑support or stiffener is used. Reducing span by adding a mid‑upright often cuts deflection by ~4× due to the span4 relationship.
| Variable | Threshold / Change | Resulting Failure Signal |
|---|---|---|
| Unsupported span (L) | L > 700–900 mm for 16–18 mm panel under book loads | Edge/mid‑span deflection > 2–3 mm in service |
| Span‑to‑thickness ratio (STI = L / t) | STI > 45–55 (particleboard), > 55–65 (MDF), > 65–75 (plywood) | Permanent set after 1–4 weeks of sustained load |
| Load density (w) | w > 20–30 kg/m (books/ceramics concentrated near front edge) | Front edge drop; door rub begins |
| Support mode | Pins only (no dado / no mid‑upright) | Hole elongation; audible creak on load/unload |
| Hardware alignment budget | Slide/hinge tolerance < expected bow at full load | Drawer bind; hinge adjustment runs out |
| Wall anchoring | No anchor or anchor not aligned with uprights | Racking under side push; rising tip‑over torque |
VBU Load Continuity Ratio (LCR):
LCR = (Number of continuous vertical supports) ÷ (Number of major load transfer interruptions).
- LCR ≥ 0.85 → Predictable, compressive behavior
- LCR 0.6–0.85 → Sag and joint slip likely over time
- LCR < 0.6 → Early deformation and drift expected
VBU Span-to-Thickness Index (STI):
STI = Span L (mm) ÷ Shelf thickness t (mm).
- STI ≤ 45 (PB/MDF) or ≤ 65 (plywood) → Elastic deflection only; low creep risk
- STI 45–60 (PB/MDF) or 65–80 (plywood) → Creep possible under heavy sustained load
- STI > 60 (PB/MDF) or > 80 (plywood) → Permanent set likely; geometry inheritance upstream/downstream
V. Diagnostic Checklist
Use this binary checklist without tools. A single “Yes” is enough to suspect sag-induced drift.
VI. VBU Matrix
Compare common shelf/support configurations and their tradeoffs.
| Configuration / Choice | Mechanical Advantage | Hidden Tradeoff | Impact on System Slack |
|---|---|---|---|
| Adjustable pins only | Simple; flexible spacing | Point bearing; hole elongation under creep | Slack ↑ as pins groove and tilt |
| Dadoed shelves (panel rests on sides) | Area support; short lever arms | Requires precise joinery; less adjustable | Slack ↓ if joints remain tight |
| Mid‑upright added | Span halved; moment reduced ~4× | Lost wide-bay access | Slack ↓↓; creep onset delayed |
| Front stiffener (edge band or metal) | I (section inertia) ↑; deflection ↓ | Weight/cost; aesthetics | Slack ↓ if bond stays rigid |
| Wall anchoring aligned with uprights | Shorter lever arms; racking control | Substrate dependence (drywall vs stud) | Slack ↓; tip torque reduced |
| Material | Typical Modulus (E) — relative | Conservative STI Target (L/t) | Notes |
|---|---|---|---|
| Particleboard | Low | ≤ 45–55 | Sensitive to creep; use mid‑supports or stiffeners for book loads |
| MDF | Low–Medium | ≤ 55–65 | Better uniformity; still creeps under sustained load near front edge |
| Plywood | Medium–High | ≤ 65–80 | Higher I for equal thickness; good candidate for longer spans |
| Solid Timber (straight grain) | High (directional) | ≤ 70–85* | *Varies by species and orientation; monitor moisture and long‑term creep |
VII. VBU Audit Card
Run this 60‑second audit on any sag‑suspect shelf:
- Visible mid‑uprights under wide bays (continuous load path)
- Shelves resting in dados or brackets with area support (not pins only)
- Front stiffeners or thick edge banding on long spans
- Published span limits for 16–18 mm shelves at 20–30 kg/m loads
If a seller does not publish span limits or load ratings, assume the design relies on pins and creep margin.
VIII. Common Mistakes & Engineered Fixes
How to stop bookshelves from bowing
Reduce effective span (add mid‑uprights), increase section inertia (front stiffeners), and shift from pin supports to area supports (dados/brackets). Anchor through uprights to reduce racking torque.
Frequent misdiagnoses re‑framed as mechanism failures:
- Mistake: “Use thicker shelves.” → Failure: Ignores span length. → Principle: Deflection ∝ L⁴/EI; shorten L or raise I.
- Mistake: “Add more screws to the pins.” → Failure: Point bearing persists. → Principle: Shift to area support (dado/bracket).
- Mistake: “Tighten hinges to fix rubbing.” → Failure: Treats symptom, not sag. → Principle: Restore geometry; reduce span/creep.
- Mistake: “Wall anchor anywhere is fine.” → Failure: Off‑axis torque remains. → Principle: Anchor through uprights to shorten lever arms.
IX. Cross-System Intelligence
Shelf sag is not an isolated defect of shelving—it is the same structural failure pattern that appears wherever long, unsupported spans are asked to carry sustained load. The mechanism is consistent: load enters the system, searches for a continuous path to ground, and instead settles into bending. Over time, that bending becomes creep, and creep hardens into permanent set.
This same span-driven behavior is already visible in other furniture systems. In expandable dining tables, for example, the center section carries weight without a direct support path, leading to mid-span deflection, alignment drift, and irreversible sag once the material relaxes under sustained stress. The physics governing those failures are identical to what occurs in shelving when span length outpaces structural depth. Expandable dining table failures demonstrate how geometry, not thickness, determines long-term stability.
The same principle appears in media storage. Increasing panel thickness often gives the illusion of strength, yet deflection continues when the distance between supports remains unchanged. Structural performance is governed by unsupported length first and material properties second. This relationship—where width and span dominate stiffness more than surface mass—is examined directly in span-driven furniture failures, where bending moments quietly accumulate despite visually robust construction.
Material choice then determines how quickly this deflection becomes permanent. Engineered panels, solid wood, and composite cores exhibit different creep rates under identical loads. When shelves sag unevenly or fail to recover after unloading, the cause is rarely fastener weakness; it is time-dependent deformation within the panel itself. This same material behavior explains why furniture that feels rigid on day one can slowly lose geometry over months and years, as detailed in material creep and panel construction analysis.
Across systems—shelves, tables, and storage units—the pattern holds: thickness delays failure, but only span control prevents it. When load paths are interrupted and bending becomes the primary carrier of weight, sag is not a possibility; it is a timeline.
Glossary — High‑Impact Terms
- Sag / Bow / Deflection
- Downward curvature of a shelf under load; starts elastically and can become permanent with creep.
- Creep
- Time‑dependent, permanent deformation of materials under sustained stress; turns temporary sag into permanent set.
- Moment
- Rotational effect (torque) at supports due to load acting at a lever arm distance.
- Lever Arm (L)
- Perpendicular distance between the line of action of a force and the pivot/support; larger L increases moment.
- Span (L)
- Unsupported distance between shelf supports; deflection grows rapidly with L4.
- Section Inertia (I)
- Geometric property of a cross‑section; higher I increases bending stiffness and reduces deflection.
- Modulus (E)
- Material stiffness; higher E reduces deflection for a given geometry and load.
- Span‑to‑Thickness Index (STI)
- Ratio L/t; higher STI indicates greater risk that elastic sag will become creep/permanent set.
- Load Continuity Ratio (LCR)
- Continuous vertical supports ÷ major load path interruptions; higher LCR predicts stable, compressive behavior.
X. Conclusion
Span–Creep Loop turns an interrupted load path into visible sag and permanent set. A practical rule: keep STI (L/t) in the safe band for your material, add mid‑supports to halve spans, and align anchors with uprights to shorten lever arms. When these thresholds are crossed, sag stops being a cosmetic issue and becomes a Drawer & Door Drift problem (Article 3).
Shelf Sag is the first visible failure layer in storage systems; everything downstream inherits its geometry.
FAQ: Shelf Sag and Early Slack
Why do shelves sag even when the panels look thick?
Because span length dominates deflection; thickness helps, but L⁴ growth wins on long bays.
Is sag reversible if I unload the shelf?
Elastic deflection rebounds; creep does not. Residual bow after 24–48 h indicates permanent set.
Do metal shelf stiffeners really work?
Yes, by increasing section inertia (I) along the front edge, reducing mid‑span deflection.
Are pins good enough for heavy book loads?
Not alone. Pins concentrate load and permit hole elongation; prefer dados or area brackets.
What is the recommended shelf span for 18 mm MDF?
For heavy book loads, target ≤ 700–900 mm or add a mid‑support/stiffener to control creep.
How do I fix a sagging bookshelf without replacing it?
Add a mid‑upright (span halved), glue/screw a front stiffener, and ensure area supports (dados/brackets). Anchor through uprights.
Why do doors start rubbing after I load shelves?
Sag alters case geometry, shifting hinge/slides out of tolerance and increasing friction.
Will wall anchors prevent sag?
No. They control racking and tip torque, but sag requires span reduction or stiffness increase.
How to reinforce sagging shelves?
Increase I (front edge stiffener), reduce L (mid‑upright), and upgrade to area supports to spread bearing.
Safe span limits for bookcase shelves
Use STI and load density: for 16–18 mm panels under book loads, ~700–900 mm is a conservative target without mid‑support.
This article explains the shelf sag layer. For the complete architecture and correct fixing order, visit the Storage Engineering Hub (Article 8) , where the entire cascade—from Load Paths to System Slack—is mapped.
Next in the series, read: Article 3 — Drawer & Door Drift , where small permanent bows turn into slide friction, hinge torque imbalance, and visible misalignment.
