Definition — Access Compensation: Access Compensation is the extra force—usually off‑axis, corner‑loaded, or impulsive—that people apply when drawers stick or doors rub. When friction or misalignment rises above the hardware’s low‑friction operating window, users instinctively pull harder, grab a corner, or slam the door, creating torque the cabinet was never designed to absorb.
When drawers bind or doors rub, users change how they open and close them—pulling off‑axis, over‑pulling, or slamming to overcome resistance. These actions add lateral load and twisting torque that multiply stress at slides, hinges, and case corners. Over time, the extra force enlarges screw holes, crushes substrate, increases racking, and accelerates drift. Access Compensation is the human amplifier that turns small alignment errors into rapid structural change, even when the cabinet still “looks fine.”
- Users supply extra force when hardware binds—usually off‑axis, uneven, or impulsive.
- Corner pulls and one‑side grabs increase handle offset, multiplying torque at slides and hinges.
- Slams and hard pulls enlarge screw holes, crush low‑density substrate, and permanently shift geometry.
- Upstream fixes—mid‑supports, reduced spans, proper anchoring—remove the need for Access Compensation.
- Heavier hardware alone cannot withstand continuous off‑axis torque from user behavior.
- Handle placement and guided hand paths can dramatically reduce torque vectors and long‑term drift.
- Core Mechanisms (I–V)
- System Context — Where This Layer Fits
- I. The Human Amplifier: How Compensation Accelerates Failure
- II. Named Mechanism
- III. Causal Chain
- IV. Engineering Thresholds
- V. Diagnostic Checklist
- Engineering Decisions (VI–X)
- VI. VBU Matrix
- VII. VBU Audit Card
- VIII. Common Mistakes & Engineered Fixes
- IX. Cross-System Intelligence
- Glossary
- X. Conclusion
- FAQ
System Context — Where This Layer Fits
In the storage engineering cascade, small structural deviations rarely remain passive. Once weight can no longer travel cleanly to the floor, geometry begins to drift and access hardware quietly leaves its low-friction operating window. At that point, the system acquires a new and powerful force source: the user.
Earlier layers in the series established how this setup forms. When load continuity breaks, as explained in load paths, panels and shelves are forced to carry bending instead of compression. Over time, that bending becomes permanent curvature through creep, as detailed in shelf sag. Those subtle geometry changes are then inherited by drawers and doors, where alignment budgets are consumed and friction rises.
As shown in the analysis of drawer and door drift, once slides and hinges are pushed beyond their adjustment range, smooth centered operation breaks down. Motion becomes asymmetric, resistance increases, and hardware begins converting user input into off-axis load rather than guided movement.
This is where Access Compensation begins. Faced with binding or rubbing, people adapt instinctively: pulling harder, grabbing corners, twisting handles, or closing with more speed to overcome resistance. Those adaptations inject torque and impulsive loads that the cabinet was never designed to absorb. A millimeter-scale geometry error is transformed into a high-rate damage loop driven by human input.
The role of this layer is to explain why deterioration suddenly accelerates. Access Compensation clarifies why hole ovalization, edge crushing, and mount slip progress faster than expected, and why heavier hardware alone rarely solves the problem. It also introduces practical field signals—corner pulls, asymmetric fingerprints, shiny rub tracks, and audible clicks at mounts—that indicate the system has crossed from passive drift into active, torque-driven escalation.
The forces introduced here do not disappear. Off-axis pulls and slams propagate through the case and must terminate at the base, where they interact with floor compliance, anchoring, and contact conditions. That interaction is examined in the discussion of floor interaction, where user-generated loads translate into rocking, lean, and reduced stability margins. Over time, these effects accumulate into the system-level reservoir of looseness described as System Slack.
Moment Arm: The perpendicular distance (L) between the line of action of the applied force and the pivot/support; larger L multiplies torque at mounts (τ = F × L).
Impulse Load: A short‑duration, high‑magnitude force from slams/impacts; even if average force is modest, peak impulse drives micro‑slip and localized crushing.
The hand path, handle height, and friction state determine the torque vector users apply at access points. Off‑axis pulls create moments about the hardware mounts; slams add high‑rate loads that exceed static tolerances. Both accelerate micro‑slip and edge crushing in low‑density substrates, locking in misalignment and increasing future friction. Human inputs complete the feedback loop that drives the cascade forward.
Moment from Offset Force: τ = F × L; larger handle offset (L) multiplies torque at mounts.
Impulse Loading: slam/impact produces short‑duration high force; joints respond with slip and crush.
Friction Coupling: higher slide/hinge friction diverts more user force into off‑axis components.
Access Compensation is visible as asymmetric fingerprints, shiny rub spots, and “one‑corner shoves.” These are not habits—they are the system asking for more torque to overcome hidden misalignment.
If access requires force beyond the hardware’s low‑friction window, users supply off‑axis and impulsive loads that multiply torque at mounts, accelerate micro‑slip, and convert minor misalignment into rapid geometric drift— regardless of hardware thickness alone.
Rule of thumb: If you must pull from a corner to get smooth motion, the cabinet is already paying a torque penalty at the mounts—fix alignment and anchoring before upgrading hardware.
I. The Human Amplifier: How Compensation Accelerates Failure
If a drawer opens only with a corner grab or a door closes only after a hip check, Access Compensation has begun. If one handle shows heavier wear than its twin, your hand path is correcting hidden geometry—by adding torque. Over time, those corrections enlarge holes, crush edges, and make the “extra pull” permanent.
Why drawers require more force over time
As drift increases friction and misalignment, users instinctively add force and shift to off‑axis pulls that multiply torque at mounts, accelerating wear.

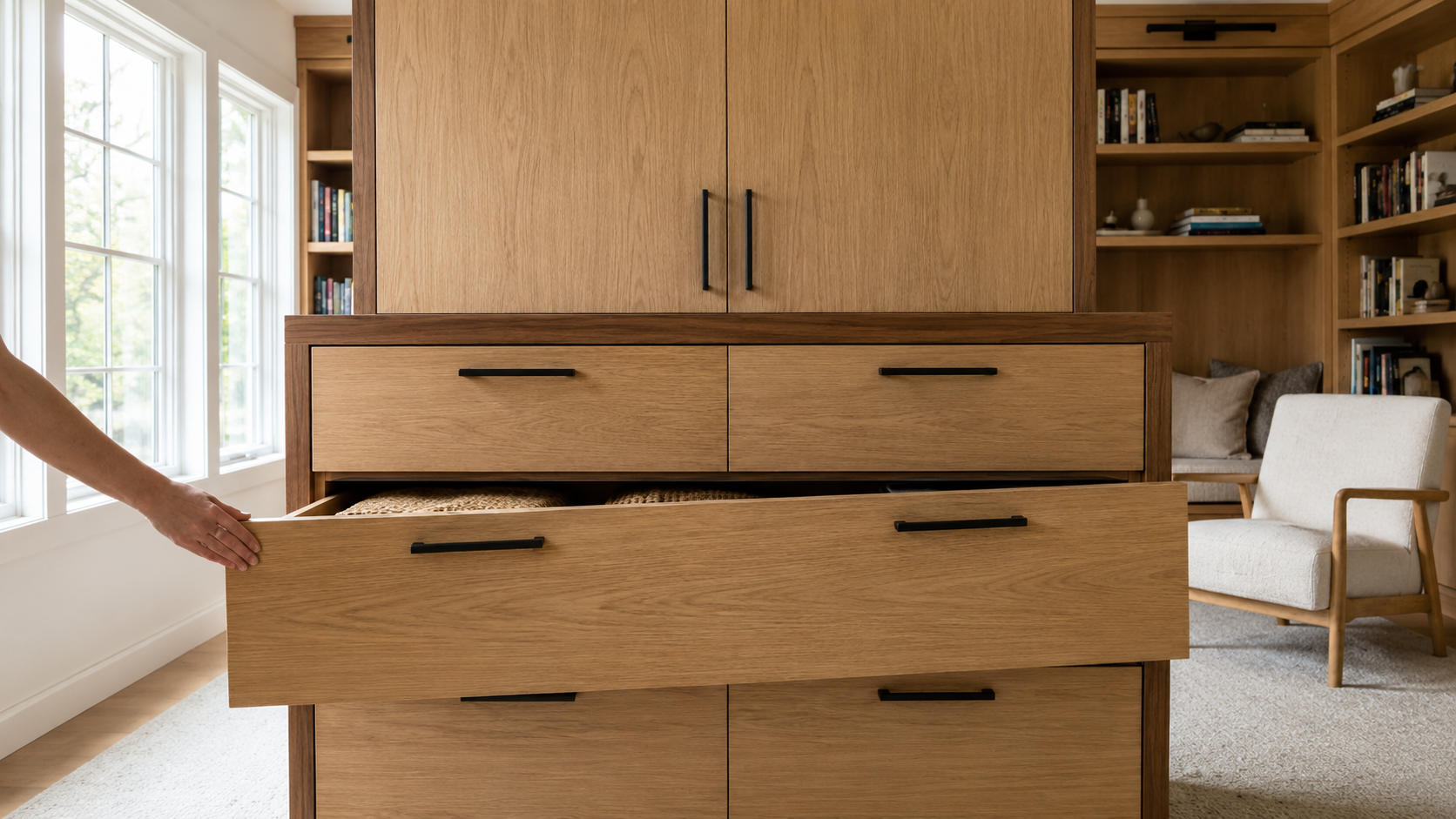

A common moment: a kitchen drawer sticks, you pull from the corner, and it suddenly opens with a sharp little “click.” That sound is the slide mount slipping. A 150–200 mm corner‑pull offset multiplies torque at the hardware and begins the Access Compensation loop—small misalignment turning into real damage.
II. Named Mechanism
Compensation Torque Spiral
The Compensation Torque Spiral starts when friction or misalignment forces users to change how they pull or push. Off‑axis and higher‑magnitude inputs create larger moments at hinges, slides, and case corners. Those moments cause micro‑slip and substrate damage, which increases friction and misalignment. The next interaction demands even more force, tightening the spiral.
How to stop a drawer from sticking or requiring a hip check
Restore geometry (square case, coplanar rails), reduce friction, shorten lever arms (centered pulls), and anchor through uprights to control racking.
III. Causal Chain
The sequence below explains how compensation begins, why it becomes habitual, and how it accelerates structural drift.
- Drift raises friction → centered pull no longer works.
- User switches to corner grab or hip check.
- Off‑axis force → torque at slides/hinges/corners.
- Torque → micro‑slip and hole ovalization.
- Geometry shifts → friction rises again.
- Repetition → rapid accumulation of System Slack.
IV. Engineering Thresholds
Define the variables and thresholds that predict when this failure mode activates.
To estimate pull force, hook one finger under the handle and pull slowly: if it feels like opening a heavy refrigerator door, you are likely above the low-friction window. To estimate handle offset, measure from drawer/door centerline to where your hand naturally grips. If you routinely pull from a corner, torque is being multiplied at the mounts.
| Variable | Threshold / Change | Resulting Failure Signal |
|---|---|---|
| Required pull force (F) | F > ~20–30 N to start drawer motion | Corner grabs; asymmetric fingerprints; handle tilt |
| Handle offset (L) from centerline | L > 120–180 mm typical kitchen/wardrobe use | Twist marks at one hinge/slide; uneven wear |
| Closure speed (impact) | Frequent slams > 1 m/s approach speed | Latch “bounce,” screw clicks, face misfit after closure |
| Substrate density at mounts | Low-density core without blocks or inserts | Rapid hole ovalization; hinge “walk” |
| Anchor alignment | Anchor not through uprights / missing top anchor | Case rocks on pull; racking audible |
| Friction state | Slide/hinge friction > design window (from drift) | Users adopt off‑axis pulls; hip checks common |
VBU Compensation Index (VCI):
VCI = (Off-axis opens per day ÷ Total opens per day) × Handle offset (m) + (Slams per day ÷ Total closes per day).
- VCI < 0.10 → Low compensation; centered use predominates
- VCI 0.10–0.25 → Moderate compensation; early torque signatures
- VCI > 0.25 → High compensation; rapid mount damage and drift expected
V. Diagnostic Checklist
Quick binary tests to confirm Access Compensation is driving damage:
VI. VBU Matrix
Design choices that influence human torque and compensation behavior.
| Configuration / Choice | Mechanical Advantage | Hidden Tradeoff | Impact on System Slack |
|---|---|---|---|
| Centered handle / two-point pulls | Short lever arm; balanced force | Requires user habit; aesthetics constraint | Slack ↓ via reduced torque at mounts |
| Corner knob (single) | Easy reach | Large offset → torque multiplier | Slack ↑ as compensation rises |
| Full-width pull bar | User can grip near center | Still allows corner grabs | Slack ↔/↓ depending on guidance |
| Soft-close tuned to alignment | Lower required closing speed | Mistuned dampers increase rebound | Slack ↓ if friction is within window |
| Anchoring through uprights | Reduces racking from off‑axis pulls | Substrate dependent | Slack ↓; torque path shortened |
| Handle Type | Typical Moment Arm (L) | Torque Risk | Notes |
|---|---|---|---|
| Center Pulls | Small (near centerline) | Low | Best default for wide drawers; encourages symmetric load into slides/hinges |
| Offset Knobs | Large (corner-biased) | High | Convenient reach but multiplies torque; accelerates hole ovalization |
| Recessed Channels | Variable | Medium | Good if grasp naturally centers; can invite corner pulls if channel extends to edge |
VII. VBU Audit Card
One‑minute Access Compensation audit:
- Centered or dual‑point pulls on wide drawers/doors
- Published max pull force and damping specs for slides/hinges
- Reinforced mount substrates (blocks/inserts) at handles and hinges
- Factory provisions for wall anchoring through uprights
- Wide pulls that encourage centered grip (not just “long handles”)
- Mount reinforcement behind handles (backer blocks/inserts), especially on wide drawers
VIII. Common Mistakes & Engineered Fixes
How to fix off‑axis torque in cabinets
Reduce handle offset (center pulls), restore alignment, tune soft‑close, and anchor through uprights to shorten lever arms.
Common missteps reframed as mechanism failures:
- Mistake: “It sticks—just pull harder.” → Failure: Increases torque. → Principle: Restore geometry; reduce friction at source.
- Mistake: “Move the knob to the corner for reach.” → Failure: Multiplies lever arm. → Principle: Keep pulls near centerline.
- Mistake: “Heavier hardware will survive slams.” → Failure: Ignores impulse loads. → Principle: Lower required force; tune damping.
- Mistake: “Add more screws to stop the click.” → Failure: Still off‑axis. → Principle: Shorten lever arm; anchor case.
IX. Cross-System Intelligence
Access Compensation occurs whenever a system that should move smoothly begins to resist motion. When drawers stick or bind, users instinctively compensate by pulling harder, twisting off-axis, or slamming. These human inputs add forces the cabinet was never engineered to absorb, accelerating wear and structural failure.
This behavior mirrors the pattern described in ergonomic pivots. When geometry drifts out of neutral, people do not stop using the system; they adapt their movement. That adaptation increases joint loading and fatigue. In cabinets, drawer misalignment shifts force from guided linear motion into torsion and lateral stress applied by the user.
A similar amplification loop appears in furniture stability. In stationary anchors, small unwanted movement invites stronger corrective pushes. Each correction enlarges clearances and weakens constraints, making the next correction even more forceful. Drawer systems follow the same loop: resistance → harder pull → hardware wear → more resistance.
Prolonged, repeated use locks compensation into habit. Analysis of sustained sitting in hybrid dining chairs under work-from-home loads shows how subtle resistance evolves into persistent compensatory behavior. In storage furniture, daily drawer use converts occasional over-pulls into routine slams, rapidly accelerating slide wear, fastener loosening, and carcass distortion.
System translation: mechanical resistance triggers human compensation; compensation introduces off-axis force; repeated off-axis force multiplies stress and converts minor alignment issues into irreversible cabinet failure. Access Compensation is the human force multiplier in the storage failure cascade.
Glossary — High‑Impact Terms
- Access Compensation
- Human‑applied off‑axis force and impact used to overcome misalignment or friction beyond the low‑friction window.
- Moment Arm (L)
- Perpendicular distance from force to pivot/support; increases torque at mounts as it grows.
- Impulse Load
- Brief, high‑magnitude force spike from slams; drives micro‑slip and localized crushing.
- Micro‑slip
- Small, cumulative movement at screws/brackets that enlarges holes and shifts geometry.
- Friction Window
- The operating range of low resistance where centered pulls work without compensation.
- Racking
- Parallelogram‑like distortion of the case under lateral/torque loads.
- Handle Offset (L)
- Distance between centerline and grip point; larger offset multiplies torque at mounts.
- Required Pull Force (F)
- Startup force needed to initiate motion; above ~20–30 N prompts off‑axis strategies.
X. Conclusion
Compensation Torque Spiral explains why “just pull harder” accelerates failure. Rule‑of‑thumb: keep handle offsets small, keep required pull forces low, and align anchors with uprights to shorten lever arms. Cross these thresholds and Access Compensation will drive rapid drift—setting up Article 5’s Floor Interaction.
Access Compensation is the first active human amplifier layer in the Storage Cascade: once it begins, every interaction accelerates drift unless geometry is restored.
FAQ: Access Compensation, Off‑Axis Pulls, and Drawer/Door Damage
What is Access Compensation in storage furniture?
Definition: Access Compensation is the user’s added off‑axis force and impact to overcome misalignment or friction beyond the low‑friction window.
Why do corner pulls and single knobs cause more damage?
Because: corner pulls increase the moment arm (L), multiplying torque at mounts and speeding hole ovalization.
Can soft‑close hardware eliminate the need to slam doors and drawers?
No: not if alignment is out of its operating window; users still slam and exceed damper profiles.
How do I know if my drawer requires too much force to open?
Yes‑test: if centered pulls fail but a corner grab works—or you feel a mid‑stroke step—you’re above the low‑friction window.
Will switching to “heavy‑duty” slides stop user‑induced damage?
No: heavier slides still need square cases and coplanar rails; off‑axis torque will overwhelm mounts if drift persists.
Where should I place handles to reduce damage from Access Compensation?
Centerline: place pulls near center, or use wide bars that invite centered grips to shorten lever arms.
Why does my cabinet behave differently when I press the top corner?
Racking: a top‑corner push alters case geometry temporarily, indicating sensitivity to anchoring and alignment.
What are the fastest ways to reduce Access Compensation at home?
Fixes: restore geometry (square & align), reduce friction, use centered pulls, and anchor through uprights.
This article explains the access compensations layer. For the complete architecture and correct fixing order, visit the Storage Engineering Hub (Article 8) , where the entire cascade—from Load Paths to System Slack—is mapped.
Next in the series: Article 5 — Floor Interaction
