Kinetic Stress: Why Reclining Sofa Mechanisms Fail at the Mounting Points

The Sofa Engineering & Comfort Architecture Series

1. Introduction: The Kinetic Engineering of Motion Furniture

In our chassis engineering study on kiln-dried hardwood vs furniture-grade plywood, we established that a sofa’s lifespan is capped by the integrity of its chassis—the load-bearing skeleton that absorbs weight, movement, and time.

That foundation was extended in our suspension load-transfer analysis, where we examined how forces travel from the body, through cushions and springs, into the frame.

This article adds the missing third dimension: motion. A reclining sofa is not simply a static structure with moving parts. It is a machine that repeatedly converts mechanical or electrical input into force, sending torque into the frame over and over—until something at the interface gives.

To understand why motion sofas fail, we must move beyond static weight and examine kinetic stress.

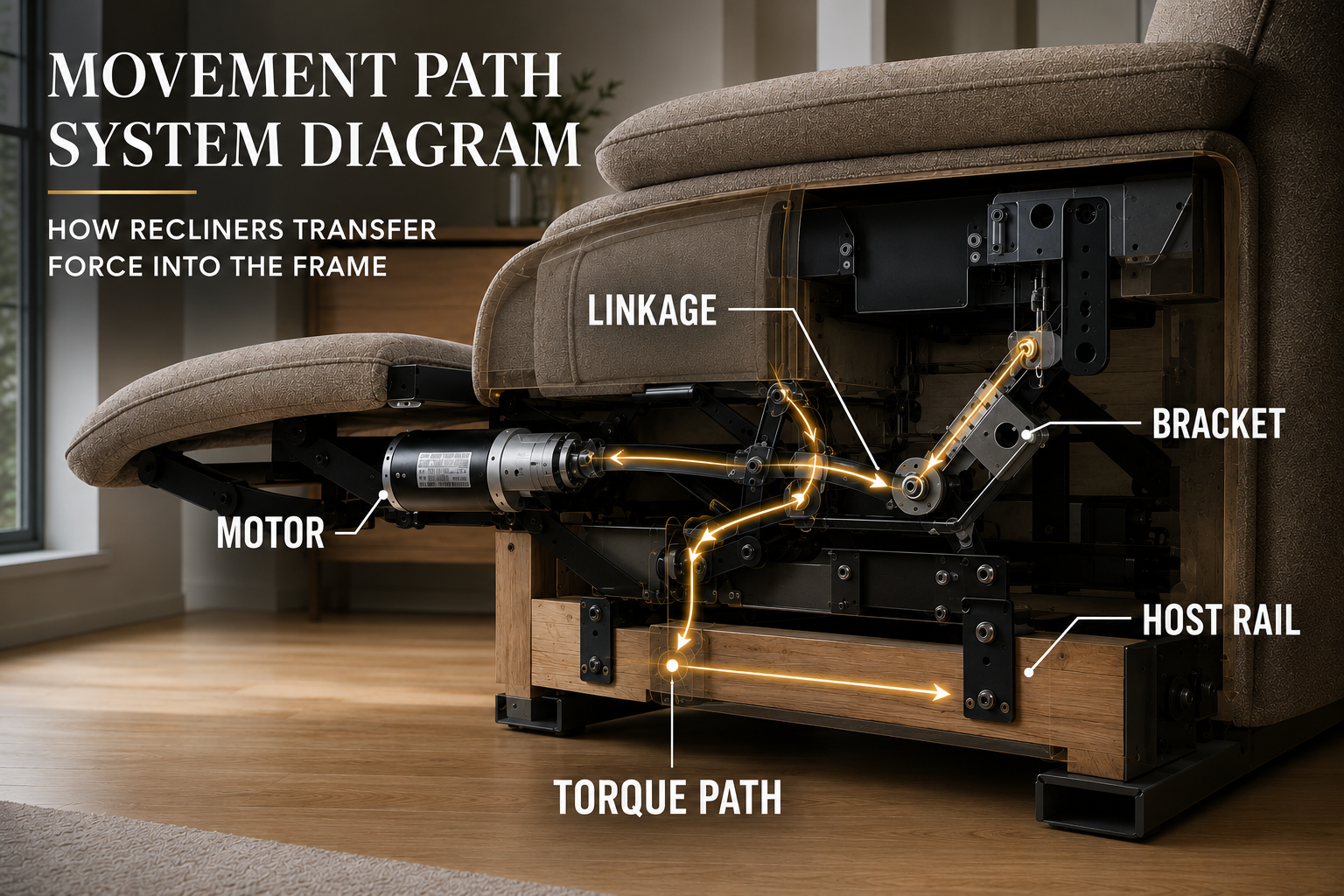

2. The Engineering Thesis: The Movement Path

Static sofas absorb load. Reclining sofas manage a movement path.

Every extension cycle sends force:

• From the motor, spring, or gas strut
• Through steel linkages and pivots
• Into mounting brackets
• And finally into the wooden host rails of the frame

This path rarely operates in isolation.

The Clearance Arc

Reclining mechanisms create a clearance arc that must coexist with circulation space. When layouts compress walkways—especially those governed by the physics described in the 36-inch walkway clearance rule—people brush past partially extended footrests, bump linkages, and introduce lateral loads that the mechanism was never meant to see.

This traffic-to-stress relationship is reinforced in our zonal transition math guide, where movement between functional zones concentrates impacts on furniture edges and accelerates joint fatigue.

And when extension changes your center-of-gravity, stability becomes a safety issue—not just comfort—especially in tighter rooms. For a broader stability framework, see our TV stand safety guide on tip-over physics and structural integrity.

Core Thesis

Reclining sofas rarely fail because steel “collapses.” They fail because repetitive torque degrades the wood at the mounting interface, allowing fasteners to loosen, holes to elongate, and noise to develop—long before a motor “dies.”

3. Actuator Systems: How the Motion Is Driven

VBU Technical Term: Linear Actuator Torque

In motion furniture, this represents the rotational force ($Nm$) applied at the motor pivot. Failure occurs when the Applied Torque exceeds the Withdrawal Resistance of the mounting fasteners in the wooden host rail.

The motor or spring is only half the story. The more important question is how that force is delivered into the frame—and whether the host rails can retain fasteners under repeated cycles.

Actuator Types: Linear vs Dual-Motor vs Gas Strut (Pros/Cons)

• Single linear actuator (common in value builds): Fewer components and lower cost, but higher chances of asymmetric loading if the frame or floor isn’t perfectly true.
• Dual-motor systems (often higher-end): More control (back + foot independently), smoother motion, and can reduce sudden load spikes—but only if the mounting interface is engineered to retain clamping force.
• Gas strut / assisted manual systems: Simple and quiet when tuned well, but they can apply sharper impulse loads if users “drop” the mechanism or slam it shut.

Wall-Hugger vs Zero-Wall Geometry (Clearance Nuance)

“Wall-hugger” and “zero-wall” are geometry claims, not durability claims. A true zero-wall design shifts the seat forward as it reclines, reducing rear clearance, but it can increase forward leverage on the host rails. Wall-huggers can still require room behind the back depending on linkage arc and headrest travel—so you must audit the full clearance arc, not just marketing labels.

4. The Physics Section: Metal-on-Wood Shear

Reclining failures are almost always interface failures.

Fastener Dynamics

• Lag Screws: Rely on friction between threads and wood fibers
• T-Nuts / Through-Bolts: Create mechanical locks that distribute load across steel surfaces
• Backing plates: Spread stress across a wider host area so the wood fibers see less localized crushing

This connector logic parallels durability frameworks in our quality guide on structural connectors and long-term stability: lifespan is often determined by joints and fasteners, not surface appearance.

Fastener Preload (The “Clicking” Sound Explained)

Add this to your mental model: in engineering, a bolt isn’t just a pin; it’s a spring. The goal is preload—the clamping force that keeps two parts from micro-slipping. If the host wood is too soft, fibers compress and the fastener loses clamping force (preload), which is a common root cause of the “clicking” sound under load reversal.

Fastener Withdrawal Resistance (Density + Fastener Type)

Withdrawal resistance is the fastener’s ability to resist being pulled out as torque cycles “rock” the bracket. Higher-density hosts (kiln-dried hardwoods or high-quality furniture-grade plywood plies) retain threads better, while low-density composite rails are prone to stripping. If you want the frame logic behind this, start with the chassis engineering study.

Coefficient of Thermal Expansion (Chicago Summers vs Winters)

Metal mechanisms and wood frames expand and contract at different rates. In Chicago’s humid summers versus dry winters, moisture-driven wood movement combined with metal thermal expansion can subtly shift bracket geometry, increasing cyclic stress at mounting points—especially when fasteners have already lost preload.

5. Lubrication Standards: Why Friction Management Matters for Longevity

Friction is not just “noise.” Friction is heat, wear, and rising reaction force—all of which gets transmitted back into the frame. Better mechanisms manage friction at pivots and sliding interfaces using manufacturer-specified lubricants and service intervals (where applicable), so the linkage moves with less resistance and less shock loading.

If lubrication is neglected or the wrong lubricant is used, pivot friction rises, the motor works harder, and the frame sees higher peak loads. This is one reason why two recliners can feel identical in a showroom yet age very differently under real daily cycles.

6. Cycle Testing Standards: What “Durable” Actually Means

Many better mechanisms are tested in the tens of thousands of cycles (often around ~25,000) to simulate years of daily use. When you want a defensible benchmark for seating durability, look for references aligned with ANSI/BIFMA X5.4—a widely cited standard for lounge/public seating performance. Even if a specific residential model isn’t certified, knowing the standard helps you evaluate the language brands use.

• Linkage Steel Thickness: Higher-end builds often use thicker linkage steel (often around 8–10 gauge) to resist racking. Thin linkages flex, and flex translates into higher stress at mounting points.
• Host Density Requirements: The host rail must be a high-retention mounting surface—best understood through our chassis engineering study on kiln-dried hardwood vs furniture-grade plywood. Low-density rails can strip threads under cyclic torque.
• Load Transfer Context: Your suspension and cushion stack changes how force arrives at the frame. If you haven’t read it yet, anchor the concept with our suspension load-transfer analysis.

Weight Rating Interpretation: Static vs Dynamic Stress

Weight ratings are often communicated as static capacity, but reclining is dynamic. Dynamic cycle stress includes acceleration, off-axis torque, and impact loads (feet dropping, people pushing off armrests), which can create peak forces that exceed what “static weight” suggests—especially at the mounting interface.

7. The VBU Matrix: Mechanism Systems Compared

Feature	Value	Utility	Performance
Interface	Wood Screws	T-Nuts / Through-Bolts	Steel Backing Plates + Through-Bolts
Linkage	Thin stamped members	Moderate thickness	Thicker linkage steel (often ~8–10 gauge)
Motion Drive	Manual spring	Single motor	Dual motor / tuned gas strut
Friction Control	Minimal	Basic lubrication	Specified lubrication + better pivot design

This matrix is about kinetic load management, not upholstery. It shows how different systems distribute torque into the frame—and why interface design, host density, and clamping force retention determine long-term durability.

8. Fail & Pass Boxes: Visual Quality Logic

9. Repair Realism: What Works When Mounts Strip

Once a host rail is stripped, “just tighten it” is not a repair—it often accelerates failure. Wood fibers have already crushed, and any regained torque tends to disappear as the fastener re-compresses the softened hole.

Reinforcements that actually have engineering merit include: drilling out and installing dowels + epoxy (to rebuild fiber structure), converting to through-bolts with washers (to stop withdrawal), or using steel backing plates (to spread stress). Cosmetic fixes (toothpicks, thin glue, oversized screws) are usually short-lived under cyclic torque.

10. Real Home Patterns: The Chicago Bungalow Challenge

Older homes—especially Chicago bungalows and early suburban builds—introduce compounding stresses. Slight floor slope can shift load disproportionately to one side, increasing racking friction and accelerating wear at the mounting interface.

Over time this can lead to:

• Asymmetric wear (one side loosens first)
• Higher motor effort as friction rises
• Accelerated host-rail degradation at the bracket mounts

Once motion causes a sofa to “drift,” it stops functioning as a stable anchor—an effect we discuss in our guide on stationary anchors and layout stability.

11. VBU Quality Audit: The “Silent Sequence” Test

You can evaluate reclining quality in-store using two checks.

The Silent Sequence

Run a full extension and retraction cycle under light load. Listen for clicks, pops, or metal-on-wood sounds. Repeating clicks at a specific point in the arc often indicate micro-slip from preload loss, not “a noisy motor.”

The Stability Lift

At near-full extension, apply gentle lateral pressure. Any side-to-side play indicates racking or poor mount reinforcement— and racking is a direct pathway to host-rail stripping over time.

These diagnostics align with broader safety and stability checks used across VBU quality guides, including our furniture stability and safety checks.

Noise is not cosmetic. It is mechanical feedback.

12. Conclusion: Managing Motion

A reclining sofa is a machine.

Longevity is not found in the motor alone, but in how effectively metal energy is anchored into wood. When the metal-to-wood interface is engineered correctly—host density, fastener type, preload retention, lubrication, and geometry—motion remains controlled and durable. When it is not, failure becomes a matter of time, regardless of price or brand.

Motion furniture must be designed as kinetic systems, not static frames with add-ons.

Where: Right before the last section / FAQ / conclusion.

13. Kinetic Performance: Technical Q&A

Why is my power recliner making a clicking noise?

Clicking is often the sound of preload loss: the fastener’s clamping force drops as wood fibers compress, allowing micro-slip at the bracket. Over time this can progress into hole elongation and racking.

What is the best wood for a reclining sofa frame?

Prioritize high-retention host rails: kiln-dried hardwoods or quality furniture-grade plywood plies that hold fasteners under cyclic torque. The frame-density logic is detailed in our chassis engineering study.

How much wall clearance does a “wall-hugger” recliner actually need?

It depends on linkage geometry and headrest travel. Some designs reduce rear clearance but increase forward leverage on mounts. Audit the full clearance arc while maintaining safe circulation using the 36-inch rule.

Manual vs power recliners: which lasts longer?

Manual systems have fewer electronics, but they can introduce sharper impulse loads when users slam the mechanism. Power systems can be smoother, but durability still depends on host density, fastener retention, preload, lubrication, and geometry.

Can you fix a stripped screw hole in a sofa frame?

Sometimes—if you rebuild structure (dowels + epoxy), convert to through-bolts, or add steel backing plates. Quick “fill-and-screw” fixes often fail under cyclic torque because they don’t restore fiber strength or clamping reliability.

Does floor leveling affect sofa mechanism alignment?

Yes. Uneven floors increase racking and can shift load disproportionately to one side, raising friction and accelerating mount wear—especially in older homes.

What cycle testing standard matters most for seating durability?

ANSI/BIFMA X5.4 is a widely cited benchmark for lounge/public seating durability. Even if a residential model isn’t certified, familiarity with the standard helps you evaluate whether durability claims have engineering meaning.
